High-Speed Interconnect Solutions for AI Data Centers: From 400G to 800G and Beyond
- Share
- publisher
- SUNKEAN
- Issue Time
- Jul 14,2026
Summary
How 800G DAC cables, PCIe Gen5 interconnects, and next-generation 224G signaling are reshaping AI data center architecture, covering signal integrity, thermal design, and scalability challenges in GPU cluster networking.
Training a 175-billion-parameter language model moves roughly 2.5 terabytes of data per second between GPUs. That's not a networking challenge — it's a physics challenge. Every meter of copper, every connector junction, and every signal via on a PCB introduces loss, jitter, and crosstalk that can degrade training throughput by 30% or more.
The AI boom has shifted the bottleneck in data center design. Five years ago, the network existed to serve the compute. Today, the compute exists to serve the network. NVIDIA's H100 GPUs, AMD's MI300X accelerators, and Google's TPUs all depend on interconnect fabrics that can move data at speeds that would have seemed absurd in 2020.
This guide examines the high-speed interconnect technologies powering modern AI data centers — from 400G DAC cables to emerging 224G signaling — and the engineering trade-offs that determine whether a cluster trains models efficiently or wastes millions in idle GPU time.
The Bandwidth Math Behind AI Training
Consider what happens during distributed training of a large language model. Each GPU needs to share gradient updates with every other GPU in the cluster after each training step. For a 1024-GPU cluster using an all-reduce communication pattern, the collective bandwidth requirement scales with the number of GPUs multiplied by the per-GPU data volume per step.
Practically speaking, a single training step on a 70B parameter model with 1024 H100 GPUs moves about 280 GB of gradient data across the network. At 400G per port, that step takes roughly 5.6 seconds in a perfectly balanced network. Add 30% overhead for protocol framing, congestion, and tail latency, and you're at 7.3 seconds. The actual compute for that step? About 2 seconds. The network is the bottleneck.
Key insight: In AI data centers, the ratio of compute time to communication time has inverted. In 2018, compute took 80% of training time and communication took 20%. In 2026, for large model training, communication accounts for 60-70% of total training time. Faster GPUs don't help if the interconnect can't feed them.
DAC Cables: Still the Workhorse
Despite the proliferation of optical transceivers, Direct Attach Copper (DAC) cables remain the dominant interconnect for short-reach AI cluster connections. Here's why:
| Factor | DAC Cable | Optical Transceiver |
|---|---|---|
| Cost per link (400G) | $200-400 | $800-2,000 |
| Power consumption | 0.5-1.0W | 3-7W per end |
| Latency | ~0.1 μs per meter | ~0.5 μs (includes serialization) |
| Max reach (passive) | 3-5 meters | N/A (always active) |
| Max reach (active) | 7-15 meters | 100m to 40km+ |
| Failure rate (annual) | 0.1-0.3% | 0.5-2.0% |
For connections within the same rack or between adjacent racks — which covers 60-70% of AI cluster cabling — DAC delivers lower cost, lower power, lower latency, and higher reliability than optics. The trade-off is reach. Beyond 5 meters, passive DAC signal integrity degrades to the point where bit error rates climb above the forward error correction (FEC) threshold.
From 100G to 400G to 800G: The Signaling Evolution
Network speed evolution in AI data centers follows a clear pattern: double the aggregate bandwidth every two years while keeping the lane count manageable. This is achieved by increasing the per-lane signaling rate:
- 100G (2016-2019): 4 lanes × 25 Gbps NRZ signaling. QSFP28 form factor. Standard for early AI clusters.
- 200G (2019-2021): 4 lanes × 50 Gbps PAM4 signaling. QSFP56 form factor. Enabled by the shift from NRZ to 4-level pulse amplitude modulation.
- 400G (2021-2024): 8 lanes × 50 Gbps PAM4 or 4 lanes × 100 Gbps PAM4. QSFP-DD and OSFP form factors. Current mainstream for H100-based clusters.
- 800G (2024-2026): 8 lanes × 100 Gbps PAM4. QSFP-DD800 and OSFP-XD form factors. Deployed in NVIDIA B200 and GB200 clusters.
- 1.6T (2026+): 8 lanes × 200 Gbps PAM4 or 4 lanes × 400 Gbps. Emerging standard for next-generation AI fabrics.
Each doubling of the signaling rate compresses the eye opening — the voltage and timing margin available to distinguish between signal levels. At 25 Gbps NRZ, the eye opening was roughly 30 ps wide. At 100 Gbps PAM4, it shrinks to about 8 ps. At 200 Gbps PAM4 (the 1.6T era), the eye is effectively closed and the signal must be recovered entirely through DSP-based equalization.

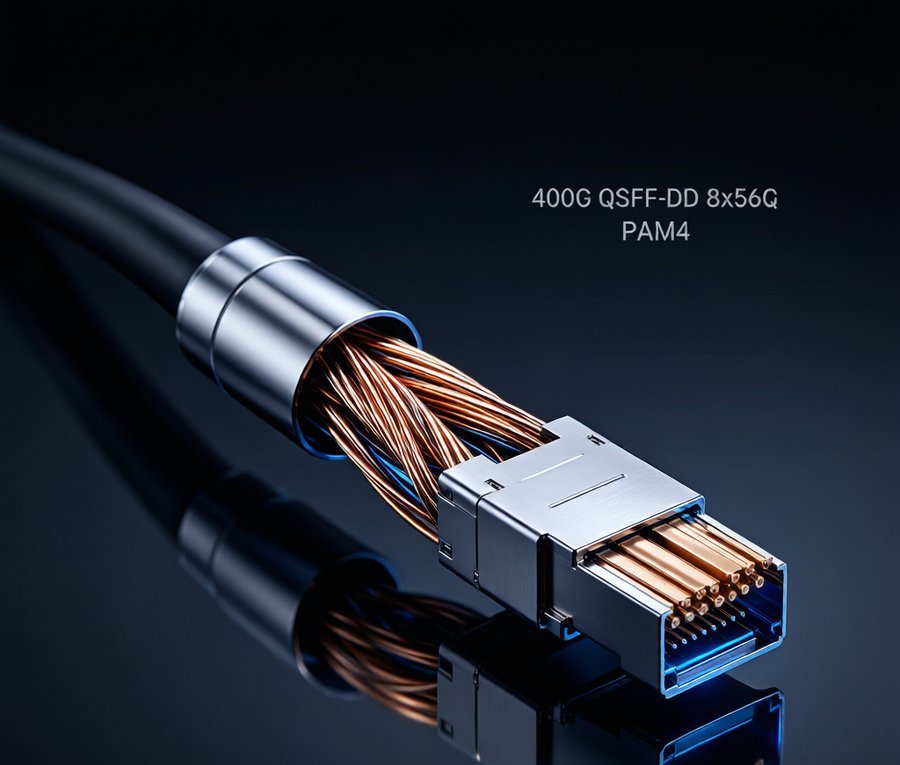

Cable Construction for 400G and 800G
The internal construction of high-speed DAC cables determines whether they can maintain signal integrity at 100 Gbps per lane. The critical design elements:
Conductor Geometry
At 100G PAM4, the conductor must maintain consistent differential impedance of 100 ohms ±5% across the entire cable length. Even minor variations in conductor spacing or insulation thickness cause impedance discontinuities that reflect signal energy back toward the transmitter. Twinax construction — two solid copper conductors held at a precise spacing by foam dielectric — remains the gold standard for high-speed differential pairs.
Insulation Material
Foam FEP (fluorinated ethylene propylene) with a dielectric constant of 1.4-1.5 is the preferred insulation for 400G+ cables. The air content in the foam reduces dielectric constant, which in turn reduces capacitance per unit length and allows tighter conductor spacing without excessive crosstalk. Solid FEP (εr ~2.1) works for 100G but introduces too much loss at 200G per lane.
Shielding Architecture
Each differential pair gets its own aluminum foil shield, and the entire cable bundle gets an overall braided shield. Pair-level shielding keeps crosstalk below -40 dB between adjacent pairs. The overall braid provides EMI immunity and prevents radiation that could interfere with adjacent cable bundles in high-density rack environments.
Skew Control
Intra-pair skew — the timing difference between the two conductors of a differential pair — must stay under 5 ps per meter at 100G. That translates to a physical length tolerance of roughly 0.5mm per meter of cable. Manufacturing precision at this level requires laser-measured cutting and controlled-pair twisting during assembly.
GPU Cluster Topologies and Their Cabling Implications
The choice of network topology drives the cabling architecture of an AI cluster. Three patterns dominate:
Spine-Leaf (Ethernet-based)
Used in many commercial cloud AI clusters. Each GPU server connects to a top-of-rack (ToR) switch via 400G DAC cables (1-3 meters). ToR switches connect to spine switches via 400G or 800G optical transceivers (50-100 meters). The DAC portion handles 60% of the cabling; the optical portion handles the remaining 40%.
Full-Fat-Tree (InfiniBand-based)
NVIDIA's preferred topology for DGX clusters. Uses InfiniBand HDR (200G) or NDR (400G) in a non-blocking fat-tree. Every GPU can communicate with every other GPU at full bandwidth. The cabling is almost entirely DAC within the rack and short-reach optics between racks. A 2048-GPU cluster can have over 3,000 DAC cables.
Direct GPU-to-GPU (NVLink-based)
NVIDIA's NVLink and NVSwitch create a separate high-speed fabric that bypasses the network entirely for GPU-to-GPU communication. NVLink4 runs at 900 GB/s aggregate bandwidth using copper PCB traces within the server chassis. No external cables needed, but the PCB itself becomes a critical signal integrity component.

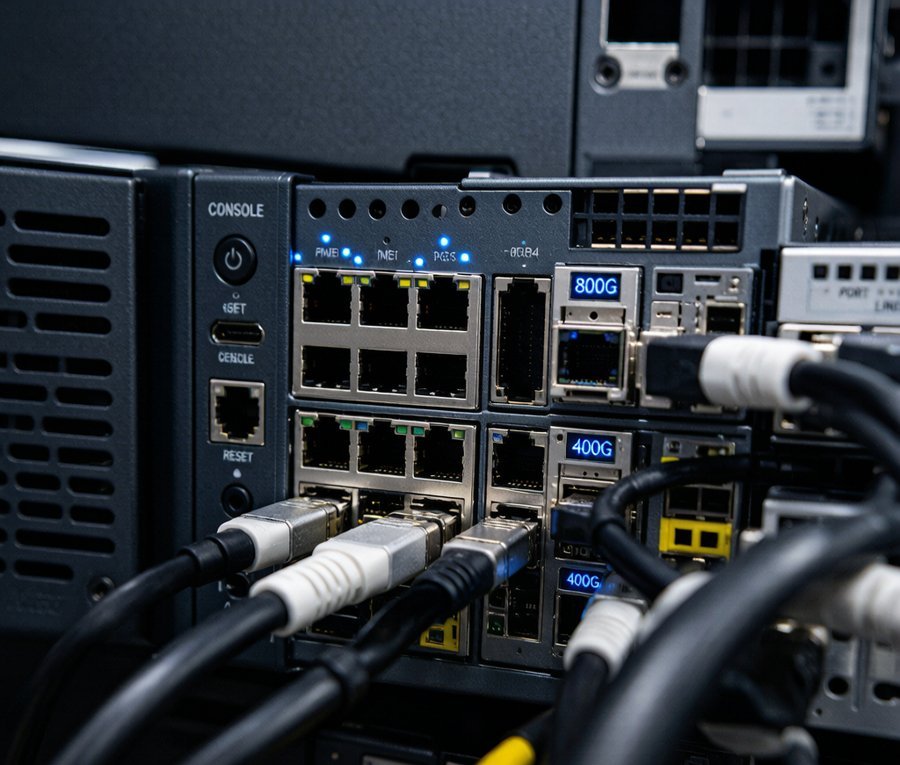

Thermal and Density Challenges

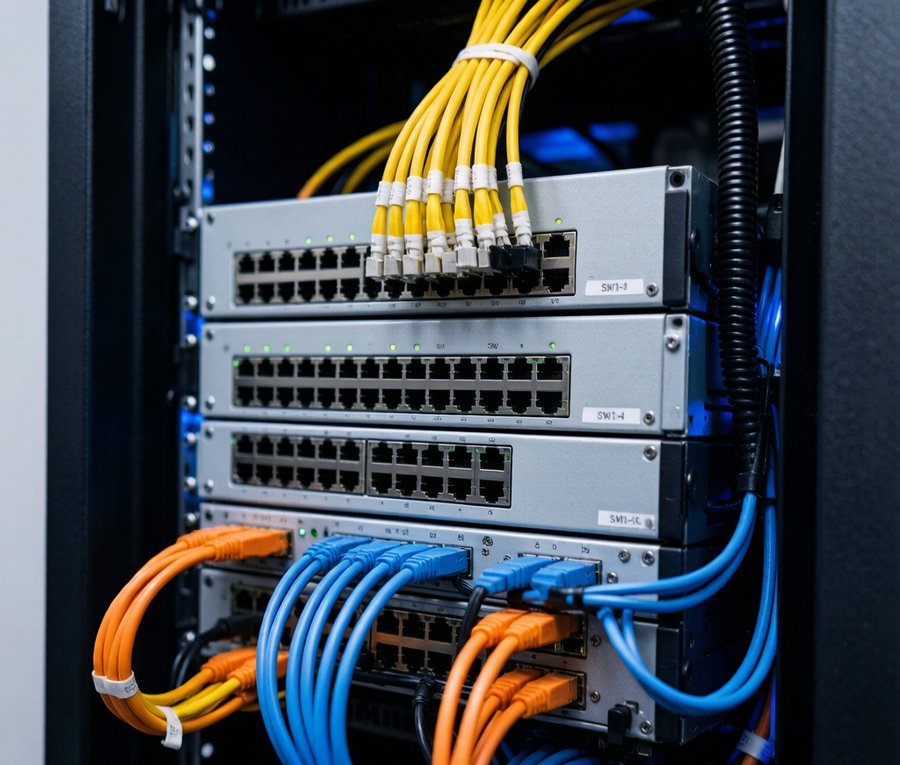

AI clusters pack more cables into less space than any previous data center architecture. A single 42U rack with 8 H100 servers can have 64 DAC cables exiting the rear, each carrying 400G of traffic. The cable bundle can be 15cm thick and weigh 12 kg.
This density creates three problems:
- Airflow restriction: Dense cable bundles block server exhaust airflow, raising inlet temperatures for the servers above. Use structured cable management trays that route cables horizontally rather than vertically in front of server vents.
- Cable weight on connectors: The QSFP-DD connector latches onto 64 ports in a 1U switch. If cables hang unsupported, the cumulative weight can deform connector solder joints over time. Support cables every 30cm with cable management arms.
- Bend radius violations: DAC cables have a minimum bend radius of 5× the cable diameter, typically 30-50mm. Tighter bends cause impedance discontinuities and increase bit error rates. In high-density racks, use angled connectors or right-angle adapters to avoid sharp bends at switch ports.
Frequently Asked Questions
When should I choose active DAC over passive DAC?
Passive DAC works up to about 3-5 meters at 400G. Beyond that distance, the accumulated signal loss exceeds the FEC correction capability and bit errors spike. Active DAC adds signal conditioning electronics (redrivers or retimers) in the connector housing, extending the usable reach to 7-15 meters. If your connection spans more than two racks, active DAC or optical is the right choice.
How does 800G DAC compare to 2×400G DAC?
800G uses a single QSFP-DD800 connector with 8 lanes at 100G, while 2×400G uses two QSFP-DD connectors with 4 lanes at 100G each. The 800G approach reduces connector count, cable management complexity, and switch port utilization. However, 800G DAC cables are thicker, less flexible, and more expensive per link. For new builds, 800G is the better choice; for upgrades, 2×400G may be more practical.
What bit error rate (BER) is acceptable for AI training traffic?
For AI cluster interconnects, pre-FEC BER should stay below 1×10⁻⁴. After FEC decoding, the effective BER should be under 1×10⁻¹². Higher error rates cause packet retransmissions that can cascade into training step timeouts. Monitor BER continuously via switch telemetry and replace cables that show degrading BER trends before they fail.
Can I mix DAC and optical cables in the same cluster?
Yes, and most AI clusters do. The typical pattern is DAC for in-rack connections (server to ToR switch), short-reach optics for rack-to-rack connections (ToR to spine), and long-reach optics for data center-to-data-center connections. The key is ensuring all links operate at the same signaling rate and that latency differences between DAC and optical paths are accounted for in the routing algorithm.
The Road Ahead: 224G and Beyond
The industry is already working on 224G per-lane signaling, which will enable 1.6T aggregate bandwidth in an 8-lane connector. The challenges are formidable — the Nyquist frequency at 224G PAM4 is 56 GHz, which means every copper trace, via, and connector contact must be optimized for millimeter-wave frequencies.
Cable manufacturers are responding with PTFE-based foam dielectrics (εr ~1.2), silver-plated copper conductors (reduced skin effect loss at high frequencies), and precision twinax geometries that maintain ±2% impedance tolerance. Connector designs are moving toward floating contact architectures that compensate for PCB warpage and connector mating misalignment.
For data center operators planning infrastructure today, the practical advice is: design for 800G deployment in 2026 with a clear upgrade path to 1.6T by 2028. That means choosing switch platforms with field-replaceable optical modules, specifying cable management that can handle the thicker 800G cables, and ensuring that your structured cabling vendor can deliver 224G-capable DAC assemblies when they're needed.
