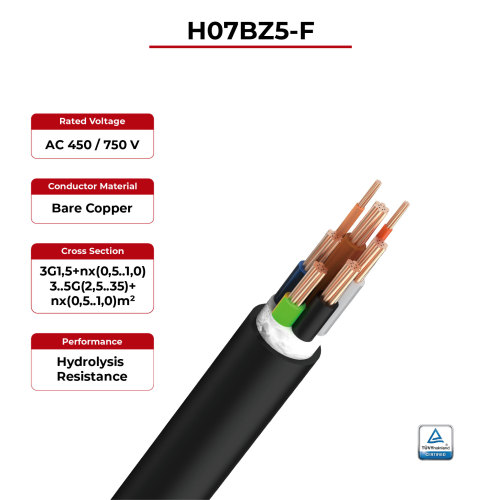

450V Charging Cable EN50620/IEC62893 EVC H07BZ5-F TÜV
- Model
- EVC H07BZ5-F
Item specifics
- Conductor
- Bare copper
- Insulating material
- XLPO
- Out layer material
- TPU
- Rated voltage
- AC 450 / 750 V
- Temperature rating
- -40°C to +90°C
- Flame Test
- IEC60332-1
- According to
- EN50620, IEC62893
Review
Description
Advantages
EN50620/IEC62893 EVC H07BZ5-F Charging Cable
A TUV certified cable that can be used with SUNKEAN charging piles, with a TPU sheath, skin-friendly and wear-resistant material. It has passed the IEC60332-1 fire test and can be safely used in industrial and commercial places or home charging piles.
· Low temperature resistance
· Oil resistant
· Acid and alkali resistant
· Ozone resistant
· Hydrolysis resistance
Technical Data
Conductor:
|
Bare copper
|
|
Insulating material / color:
|
XLPO
Main core: Blue, brown, black, gray, yellow and green
Single wire core:Orange,red |
|
Out layer material / color:
|
TPU / Optional colors(except white)
|
|
Rated voltage:
|
AC 450 / 750 V
|
|
Temperature rating:
|
-40°C to +90°C
|
|
Flame Test: | IEC60332-1 | |
According to: | EN50620, IEC62893 |
Product description
Cross section
(AWG) |
Permissible ampacity(Ref.)
(A) |
Insulation Nom Thickness
(mm) |
Outer Sheath Nom Thickness
(mm) |
Non-shiedlded Cable O.D.
(mm) |
Conductor Resistance
Max (Ω/km, 20°C) |
3x1.5mm2+(0~10)x(0.5~1.0) |
10
|
0.70
|
1.50
|
9.2~11.8
|
13.3 |
3x2.5mm2+(0~10)x(0.5~1.0) |
16
|
0.70
|
1.60
|
10.1~13.2
|
7.98 |
3x4mm2+(0~10)x(0.5~1.0) | 20 | 0.70 | 1.70 | 12.1~15.5 | 4.95 |
3x6mm2+(0~10)x(0.5~1.0) | 32 | 0.70 | 1.90 | 13.7~17.5 | 3.30 |
3x10mm2+(0~10)x(0.5~1.0) | 40 | 0.70 | 2.10 | 16.3~20.8 | 1.91 |
5x2.5mm2+(0~10)x(0.5~1.0) | 63 | 0.70 | 2.40 | 19.4~24.9 | 1.21 |
5x2.5mm2+(0~10)x(0.5~1.0) | 16 | 0.70 | 1.80 | 12.9~16.5 | 7.98 |
5x4mm2+(0~10)x(0.5~1.0) | 20 | 0.70 | 2.00 | 14.9~19.1 | 4.95 |
5x6mm2+(0~10)x(0.5~1.0) | 32 | 0.70 | 2.20 | 16.9~21.7 | 3.30 |
5x10mm2+(0~10)x(0.5~1.0) | 40 | 0.70 | 2.50 | 20.3~25.9 | 1.91 |
5x16mm2+(0~10)x(0.5~1.0) | 63 | 0.70 | 2.80 | 24.2~31.0 | 1.21 |
5x25mm2+(0~10)x(0.5~1.0) | 80 | 0.90 | 3.40 | 30.2~38.7 | 0.780 |
5x35mm2+(0~10)x(0.5~1.0) | 125 | 0.90 | 3.90 | 35.6~45.5 | 0.554 |
