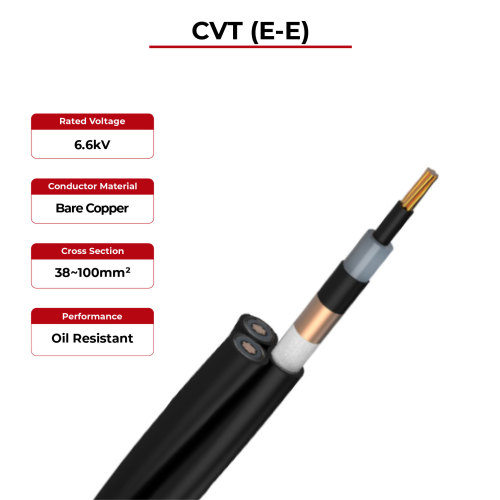

6.6kV Solar Cable Copper Conductor CVT (E-E)
6.6kV Solar Cable Copper Conductor CVT (E-E)
6.6kV Solar Cable Copper Conductor CVT (E-E)
6.6kV Solar Cable Copper Conductor CVT (E-E)
Model
CVT (E-E)

Item specifics

Rating Voltage
6600V
Testing Voltage
AC 17kV
Reference Standard
JIS C 3005, JIS C 3606
Conductor
Bare copper
Insulation
XLPE, Natural color
Shield
Semi-conductive shield, metal shield
Fabric
Nonwoven fabric
Jacket
PVC, Black

Review

Description

CVT (E-E) Solar Cable Advantages
solar cable
6.6kV Solar Cable Copper Conductor CVT (E-E)
The cable has a voltage of 6.6kV, which is a medium voltage between 1 kV and 35 kV. This type of cable has copper conductor, and is widely used in urban distribution networks, industrial enterprises, and large-building power supply systems. Medium-voltage cables are economical and practical for power transmission and can meet the power needs of most occasions. In addition, its structural design is complex, including a semi-conductive shielding layer, a metal shielding layer, and non-woven fabric.

· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
· Flame retardant JIS C 3005 (60 degrees tilt test)
CVT (E-E) Solar Cable Technical Data
Tested voltage
17kV AC
Rated voltage
6600V
Reference Standard
6600V
copper conductor cable
CVT (E-E) Solar Cable
CVT (E-E) Solar Cable Product description
Cable Name
Cross Section
(mm²)
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,20°C)
6.6kV Solar Cable Copper Conductor CVT (E-E)
38
4.00
2.10
46.50
0.491
60
4.00
2.20
51.50
0.311
100
4.00
2.40
56.00
0.187
