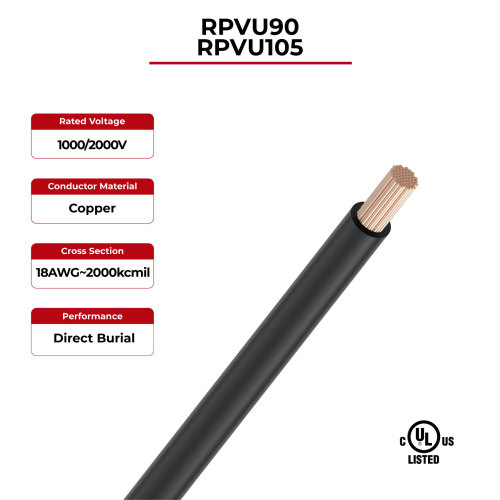

2kV Solar Cable Single Layer RPVU90, RPVU105 CUL
- Model
- RPVU90, RPVU105
Item specifics
- Rated voltage
- 1000/2000V
- Insulation
- XLPO, Black, red, white or other colors
- Conductor
- Aluminum alloy
- According to
- CSA C22.2 NO.271:11, CSA C22.2 NO.38
Review
Description

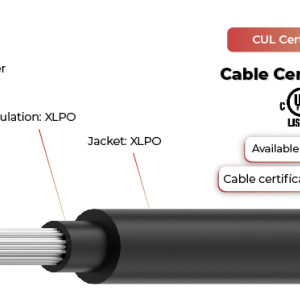

RPVU90, RPVU105 Solar Cable Advantages
2kV Solar Cable Single Layer RPVU90, RPVU105 CUL
RPVU cable passed the FT-1 vertical burning test and has good flame retardancy, the 2kV voltage makes it perfectly suitable for various large-scale projects such as photovoltaic power stations. We prepare brand new but project-experienced aluminum conductor solutions, which can effectively control costs.
· UV resistant
· Rated for direct buria
· High flame retardant FT
· Low smoke halogen free
· Higher insulation resistance
RPVU90, RPVU105 Solar Cable Technical Data
|
Rated temperature
|
RPVU90: -40°C ~ +90°C
RPVU105: -40°C ~ +105°C |
|
|
Rated voltage
|
1000/2000V
|
|
Reference Standard | CSA C22.2 NO.271:11
CSA C22.2 NO.38 | |
RPVU90, RPVU105 Solar Cable Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
2kV RPVU90, RPVU105 Single Layer | 6 | 2.03 | 8.40 | 2.210 |
4 | 2.03 | 9.50 | 1.390 | |
2 | 2.03 | 10.90 | 0.875 | |
1 | 2.41 | 12.45 | 0.693 | |
1/0 | 2.41 | 13.35 | 0.550 | |
2/0 | 2.41 | 14.45 | 0.436 | |
3/0 | 2.41 | 15.55 | 0.346 | |
4/0 | 2.41 | 16.95 | 0.274 | |
250 | 2.79 | 18.85 | 0.232 | |
300 | 2.79 | 20.15 | 0.194 | |
350 | 2.79 | 21.35 | 0.166 | |
400 | 2.79 | 22.35 | 0.145 | |
450 | 2.79 | 23.45 | 0.129 | |
500 | 2.79 | 24.35 | 0.116 | |
550 | 3.18 | 25.95 | 0.106 | |
600 | 3.18 | 26.85 | 0.0967 | |
650 | 3.18 | 27.65 | 0.0893 | |
700 | 3.18 | 28.40 | 0.0829 | |
750 | 3.18 | 29.30 | 0.0774 |
