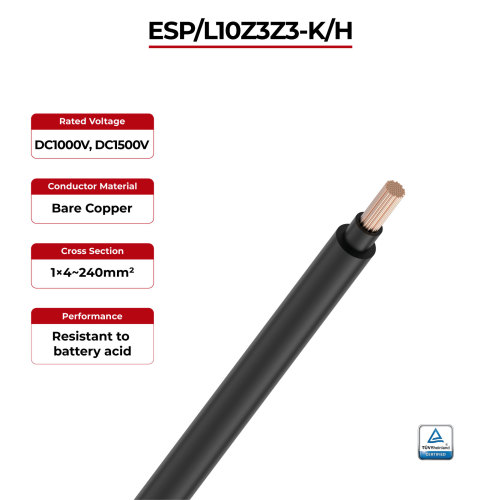

1kV Energy Storage Cable ESP/L10Z3Z3-K/H SM-R DH-R TÜV
- Model
- ESP/L10Z3Z3-K/H SM-R DH-R
Item specifics

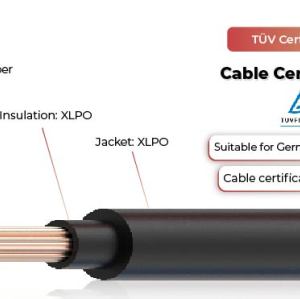

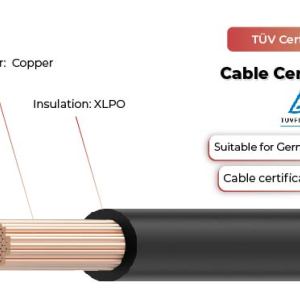

- Conductor
- Tinned or bare copper
- Insulation
- XLPO
- Rated temperature
- -40°C ~ +125°C
- Rated voltage
- 1000V DC
- Flame test
- IEC 60332-1
- According to
- TÜV 2 PfG 2693/03.23
Review
Description
ESP/L10Z3Z3-K/H SM-R DH-R Energy Storage Cable Advantages
ESP/L10Z3Z3-K/H SM-R DH-R Energy Storage Cable
ESP/L10Z3Z3-K/H SM-R DH-R energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.
· Low smoke halogen free
· Resistan to battery acid
· High flame retardant
· Salt mist resistant
· Damp heat resistant
ESP/L10Z3Z3-K/H SM-R DH-R Energy Storage Cable Technical Data
|
Conductor
|
Tinned or bare copper
|
|
|
Insulation
|
XLPO |
|
|
Rated temperature
|
-40°C ~ +125°C
|
|
|
Rated voltage
|
1000V DC
|
|
According to | TÜV 2 PfG 2693/03.23 | |
Flame test | IEC 60332-1 | |
ESP/L10Z3Z3-K/H SM-R DH-R Energy Storage Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Nom Thickness
(mm) |
Insulation Max O.D. (mm) | Jacket Nom Thickness
(mm) |
Cable Max O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
TÜV ESP/L10Z3Z3-K/H SM-R DH-R |
4 |
0.70 |
4.60 | 1.00 |
6.80 |
4.95 |
|
6
|
0.70
|
5.20 | 1.00 |
7.60
|
3.30 | |
10 | 0.70 | 6.60 | 1.10 | 9.00 | 1.91 | |
16 | 0.70 | 7.80 | 1.10 | 10.50 | 1.21 | |
25 | 0.90 | 9.60 | 1.20 | 12.50 | 0.780 | |
35 | 0.90 | 11.50 | 1.20 | 14.00 | 0.554 | |
50 | 1.00 | 13.50 | 1.30 | 16.00 | 0.386 | |
70 | 1.10 | 15.50 | 1.40 | 18.50 | 0.272 | |
95 | 1.10 | 17.50 | 1.50 | 21.00 | 0.206 | |
120 | 1.20 | 19.50 | 1.60 | 23.00 | 0.161 | |
150 | 1.40 | 22.00 | 1.70 | 25.50 | 0.129 | |
185 | 1.60 | 24.00 | 1.80 | 28.00 | 0.106 | |
240 | 1.70 | 27.50 | 1.90 | 31.50 | 0.0801 |
