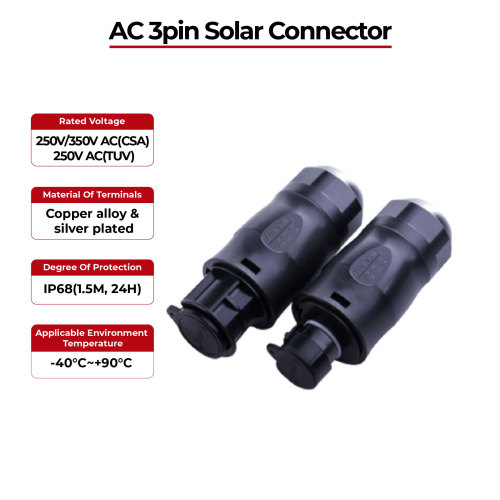

AC 3pin IP68 Solar Connector UL
- Model
- AC 3pin
Item specifics
- Level protection of enclosure
- IP68
- Plastic material
- high-quality plastic material
- Installation
- Screw connection for easy field installation
Review
Description
AC 3pin IP68 Solar Connector Advantages
Solar Connector AC 3pin IP68 UL
Solar Connectors are specialized connectors used for cable connections in solar photovoltaic (PV) systems.
· Screw connection for easy field installation
· IP68 level protection of enclosure
· Choose the best plastic material, ensure the product performance and using life
· Product quality is stable and reliable
AC 3pin IP68 Solar Connector Product description
Product Name | Item | Cable to Cable | Flange to Cable |
||
Solar Connector AC 3pin IP68 UL | Outline size (Close state) | Ø34.8*153 mm | Ø36*120 mm |
||
Applicable environment temperature | -40°C~+90°C |
||||
Rated voltages | 250V/350V AC(CSA) 250V AC(TUV) | ||||
Rated current | 25A(4mm²) | ||||
Max current | 30A(4mm²) | ||||
Number of terminals | 2+PE | ||||
Material of terminals | Copper alloy & silver plated | ||||
Contact resistance | ≤1mΩ | ||||
Material of enclosure | PPO | ||||
Over-voltage category | III | ||||
Insulation resistance | ≥100MΩ | ||||
Degree of protection by enclosure | IP68(1.5M, 24H) | ||||
Enclosure flame class | UL94-V0 | ||||
Applicable wire gauge | 2.5/4.0mm² | ||||
Outer cable diameter | 10-14mm | ||||
Termination | Screw type | ||||
Locking system | Snap-in | ||||
Standard | UL6703A; EN61535; PPP59015A; 2013 | ||||
