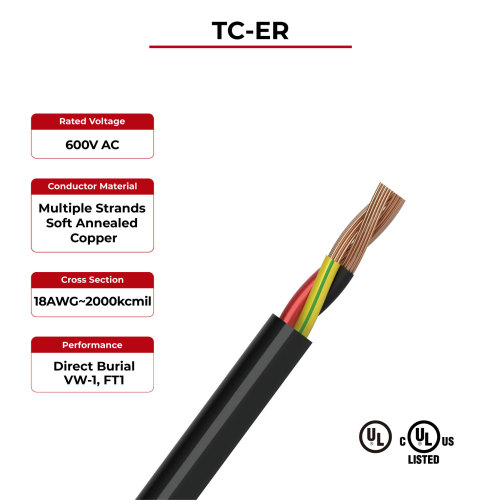

600V Solar Cable Copper Conductor TC-ER
- Model
- TC-ER
Item specifics
- Rated temperature
- -40°C~90°C
- Rated voltage
- 600V
- Number of cores
- ≥2
- Conductor
- Multiple strands soft annealed copper
- Insulation
- XLPE, Black & red & yellow/green or other colors
- Jacket
- XLPO, Black
- Reference Standard
- UL758, UL1581, UL44, UL1277
Review
Description
TC-ER Solar Cable Advantages
600V Solar Cable Copper Conductor TC-ER
This cable can be used for photovoltaic inverter AC branch lines.
· Oil resistant
· Waterproof
· Sunlight resistant
· Extrusion resistant
· Rated for direct burial
· High flame retardant Vw-1
TC-ER Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Rated voltage | 600V | |
|
Number of cores
|
≥2
|
|
Reference Standard | UL758, UL1581, UL44, UL1277 | |
TC-ER Solar Cable Product description
Cable Name |
Conductor
No. | Cross Section
(AWG) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable Copper Conductor TC-ER | 2 | 18 | 0.76 | 2.80 | 1.14 | 8.40 | 21.80 |
16 | 0.76 | 3.10 | 1.14 | 9.00 | 13.70 | ||
14 | 0.76 | 3.50 | 1.14 | 9.80 | 8.62 | ||
12 | 0.76 | 4.00 | 1.14 | 10.80 | 5.43 | ||
10 | 0.76 | 4.60 | 1.14 | 12.00 | 3.409 | ||
3 | 18 | 0.76 | 2.80 | 1.14 | 8.80 | 21.80 | |
16 | 0.76 | 3.10 | 1.14 | 9.60 | 13.70 | ||
14 | 0.76 | 3.50 | 1.14 | 10.40 | 8.62 | ||
12 | 0.76 | 4.00 | 1.14 | 11.50 | 5.43 | ||
10 | 0.76 | 4.60 | 1.14 | 12.80 | 3.409 | ||
8 | 1.14 | 6.50 | 1.52 | 17.60 | 2.144 | ||
6 | 1.14 | 7.50 | 1.52 | 19.80 | 1.348 | ||
4 | 18 | 0.76 | 2.80 | 1.14 | 9.60 | 21.80 | |
16 | 0.76 | 3.10 | 1.14 | 10.40 | 13.70 | ||
14 | 0.76 | 3.50 | 1.14 | 11.40 | 8.62 | ||
12 | 0.76 | 4.00 | 1.14 | 12.60 | 5.43 | ||
10 | 0.76 | 4.60 | 1.52 | 14.20 | 3.409 | ||
8 | 1.14 | 6.50 | 1.52 | 19.00 | 2.144 | ||
5 | 18 | 0.76 | 2.80 | 1.14 | 10.60 | 21.80 | |
16 | 0.76 | 3.10 | 1.14 | 11.50 | 13.70 | ||
14 | 0.76 | 3.50 | 1.14 | 12.60 | 8.62 | ||
12 | 0.76 | 4.00 | 1.52 | 14.60 | 5.43 | ||
10 | 0.76 | 4.60 | 1.52 | 16.20 | 3.409 |
