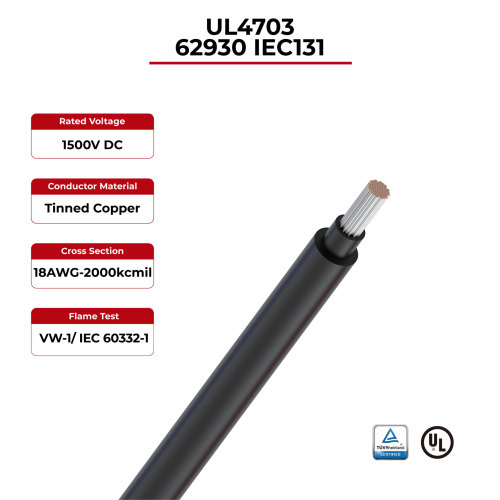

1.5kV Solar Cable EN 50618 H1Z2Z2-K & UL4703 IEC62930
- Model
- EN 50618 H1Z2Z2-K & UL4703
Item specifics
- Rated temperature
- -40°C~90°C
- Tested voltage
- 6500V AC
- Rated voltage
- 1500V DC
- Conductor
- Tinned copper 2.5 ~ 6mm²
- Insulation
- XLPO, Black or white
- Out Layer
- XLPO, Black or red or other colors
- Flame Test
- VW-1/ IEC 60332-1
Review
Description
EN 50618 H1Z2Z2-K & UL4703 Solar Cable Advantages
1.5kV Solar Cable EN 50618 H1Z2Z2-K & UL4703 IEC62930
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.
· UV resistant
· Rated for direct burial
· High flame retardant Vw-1/IEC60332-1
· Low smoke halogen free
· Higher insulation resistance
EN 50618 H1Z2Z2-K & UL4703 Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
1500V DC
|
|
Testing Standard | Smoke Density Test: Transmittance≥60% EN50618
Cold Bending Test: -40°C±2°C no crack EN60811-504
Flame Test: VW-1/ IEC 60332-1 | |
EN 50618 H1Z2Z2-K & UL4703 Solar Cable Product description
Cable Name |
Cross Section
(AWG) | Inner Layer Thickness (mm) |
Inner Layer O.D.
(mm) |
Outer Layer Thickness (mm) | Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable EN 50618 H1Z2Z2-K & UL4703 IEC62930 | 12 | 1.16 | 4.58 | 0.38 | 5.34 | 5.43 |
10 | 1.16 | 5.19 | 0.38 | 5.95 | 3.41 | |
8 | 1.35 | 6.31 | 0.76 | 7.83 | 2.14 | |
6 | 1.69 | 7.9 | 0.76 | 9.42 | 1.35 | |
4 | 1.69 | 9.1 | 0.76 | 10.62 | 0.848 | |
3 | 1.69 | 9.78 | 0.76 | 11.3 | 0.673 | |
2 | 1.69 | 10.57 | 0.76 | 12.09 | 0.534 | |
1 | 2.02 | 12.22 | 1.14 | 14.5 | 0.423 | |
1/0 | 2.02 | 13.23 | 1.14 | 15.51 | 0.335 | |
2/0 | 2.02 | 14.04 | 1.14 | 16.32 | 0.266 | |
3/0 | 2.02 | 15.64 | 1.14 | 17.92 | 0.211 |
