Model
SAS3.0

Item specifics

Rated temperature
80°C
Rated voltage
30V
Conductor
Silver-plated
Insulation
FEP/PE
Environmental Standards Compliance
RoHS 2.0
File Number
E522621

Review

Description

High Speed Active Optical Cable (AOC) SAS 3.0 Advantages
sas active optical cable aoc high speed in data center

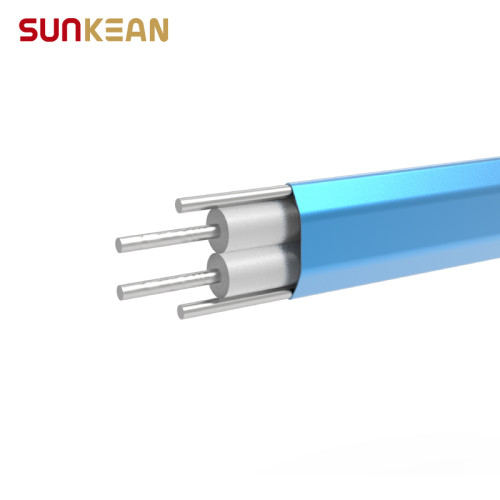

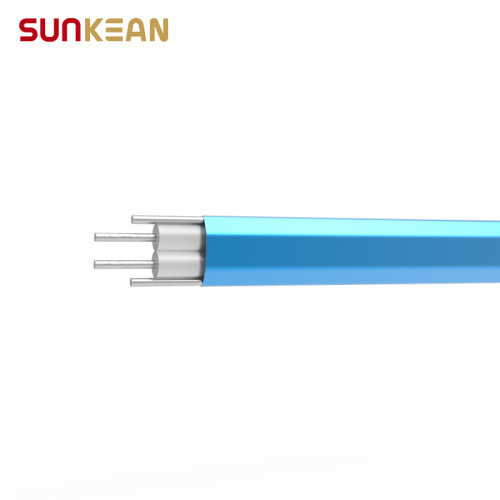

100Ω High Speed Active Optical Cable (AOC) SAS 3.0
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.

· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
High Speed Active Optical Cable (AOC) SAS 3.0 Technical Data

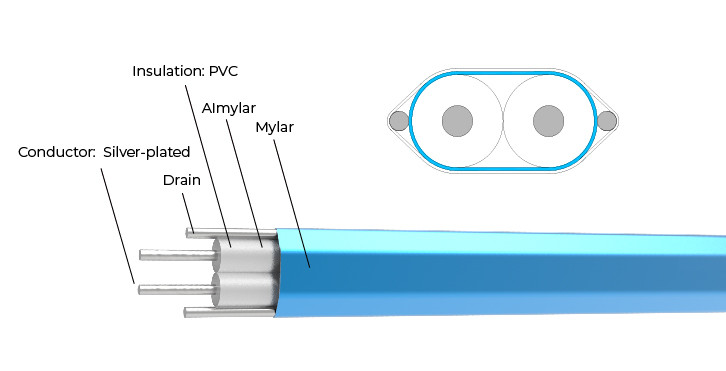

Conductor
Silver-plated
Insulation
FEP/PE
Rated temperature
80°C
Rated voltage
30V
Ground Wire
Yes
Environmental Standards Compliance
RoHS 2.0
File Number
E522621
sas3.0 High Speed Data Cables active optical fiber
High Speed Active Optical Cable (AOC) SAS 3.0 Product description
Cable Name
Cross Section
(AWG)
Insulation Thickness
(mm)
Cable O.D.
(mm)
Insertion Loss
(4.5GHz)
Insertion Loss
(9GHz)
Delay
100Ω High Speed Active Optical Cable (AOC) SAS 3.0
34
0.5
0.62*1.52
6dB
10.2dB
5.2ns
32
0.58
0.75*1.75
5dB
8.5dB
5.2ns
30
0.82
0.96*2.18
4dB
6.5dB
5.2ns
