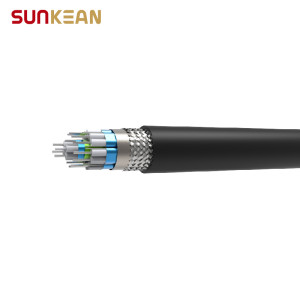

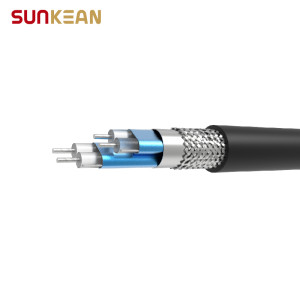

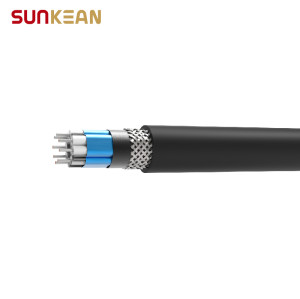

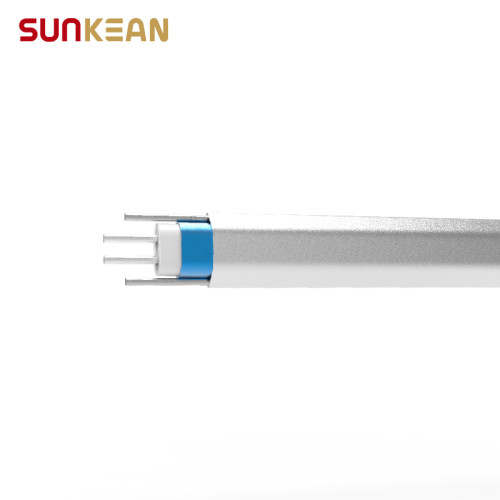

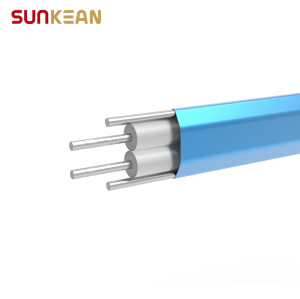

100Ω High Speed Direct Attach Cable (DAC) SFP112GHz 100G UL Certified
- Model
- SFP
Item specifics
- Rated temperature
- 80°C
- Rated voltage
- 30V
- Conductor
- Silver-plated
- Insulation
- PE/Foam FEP/ Foam PE/PE
- Environmental Standards Compliance
- RoHS 2.0
- File Number
- E522621
Review
Description
High Speed Direct Attach Cable (DAC) SFP112GHz 100G Advantages
100Ω High Speed Direct Attach Cable (DAC) SFP112GHz 100G
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.
· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
High Speed Direct Attach Cable (DAC) SFP112GHz 100G Technical Data
Conductor | Silver-plated |
Insulation | FEP+FEP/PE/FEP+PTFE
|
| Rated temperature | 80°C |
| Rated voltage | 30V |
| Ground Wire | Yes |
Environmental Standards Compliance | RoHS 2.0 |
File Number | E522621 |
High Speed Direct Attach Cable (DAC) SFP112GHz 100G Product description
Cable Name |
Cross Section
(AWG) |
Insulation
| Insulation OD (mm) | Cable O.D. (mm) | Insertion Loss (26.56GHz) | Delay |
100Ω High Speed Direct Attach Cable (DAC) SFP112GHz 100G | 30 | FEP+FEP/PE
FEP+PTFE
| 0.52 0.58 | 1.08*1.8
1.05*2.0
| 7.6dB | 5.2ns |
28 | FEP+PTFE
| 0.8 | 1.25*2.4
| 6.1dB | 5.2ns | |
26 | FEP+PTFE
| 1.05 | 1.48*2.9
| 5.8dB | 5.2ns |
