300V High-temperature Cable UL3132
- Model
- UL3132
Item specifics

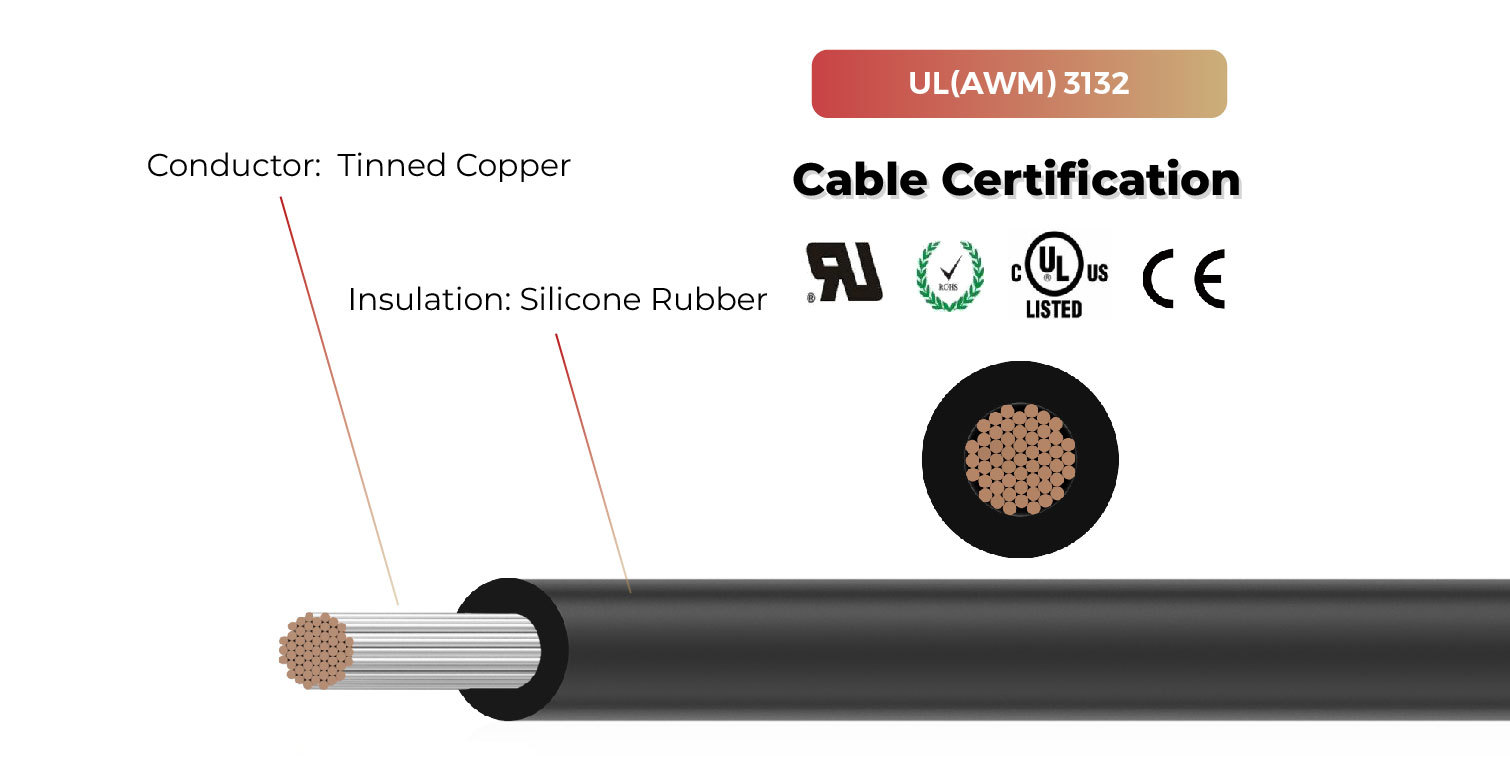

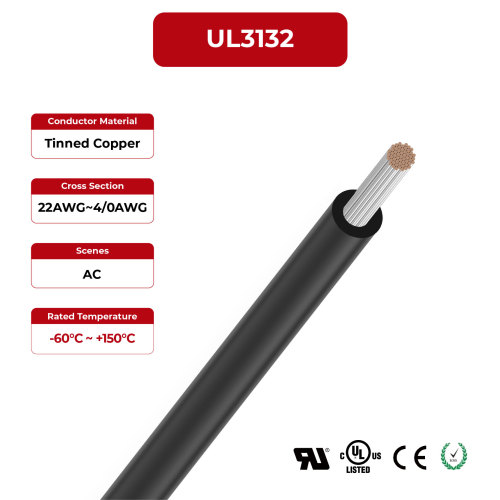

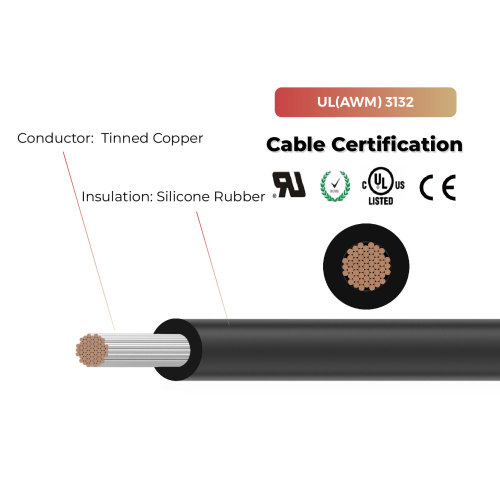

- Conductor
- Fine wire strands of tinned copper
- Insulation
- Special silicone compound
- Rated temperature
- -60°C ~ +150°C
- Rated voltage
- AC 300V
- Flame Test
- Horizontal flame CSA FT2
- According to
- UL758, UL1581
Review
Description
UL3132 High-temperature Cable Advantages
UL3132 High-temperature Cable
UL3132 high-temperature cables are used for various electric machineries , electronics, heating parts, car
lights, lighting, ballast etc., flexible cable.
· Low smoke halogen free
· High temperature resistant
· Ozone / oxidation resistant
· High flexibility
UL3132 High-temperature Cable Technical Data
|
Conductor
|
Fine wire strands of tinned copper
|
|
|
Insulation
|
Special silicone compound |
|
|
Rated temperature
|
-60°C ~ +150°C
|
|
|
Rated voltage
|
AC 300V
|
|
According to | UL758, UL1581 | |
Flame Test | Horizontal flameCSA FT2 | |
UL3132 High-temperature Cable Product description
Cable Name |
Cross Section
(AWG) |
Conductor Size
(mm) |
Approx. Conductor Stranded O.D. (mm) | Insulation AVG Thickness (mm) | Insulation Min Thickness (mm) | Insulation Diameter (mm) | Maximum DC Resistance Of Conductor At 20℃ （ohms/km(AS/TS)） | Spark Test (kV(AC)) | Dielectric Strength (kV/min(AC)） |
UL3132 | 22 | 7/0.254 | 0.76 | 0.38 | 0.33 | 1.60±0.05 | 55.4/59.4 | 3 | 2 |
21 | 10/0.254 | 0.93 | 0.38 | 0.33 | 1.75±0.05 | 43.6/46.9 | 3 | 2 | |
20 | 26/0.16 | 0.94 | 0.38 | 0.33 | 1.75±0.05 | 34.6/36.7 | 3 | 2 | |
19 | 24/0.20 | 1.13 | 0.38 | 0.33 | 1.95±0.05 | 27.4/29.1 | 3 | 2 | |
|
18
|
16/0.254
|
1.17 | 0.38 | 0.33 | 2.00±0.10 | 21.8/23.2 | 3 | 2 | |
|
17
|
21/0.254
|
1.34 | 0.38 | 0.33 | 2.15±0.10 | 17.3/18.3 | 3 | 2 | |
16 | 26/0.254 | 1.49 | 0.38 | 0.33 | 2.30±0.10 | 13.7/14.6 | 3 | 2 | |
15 | 32/0.254 | 1.66 | 0.38 | 0.33 | 2.50±0.10 | 10.9/11.3 | 3 | 2 | |
14 | 41/0.254 | 1.88 | 0.38 | 0.33 | 2.70±0.10 | 8.62/6.93 | 3 | 2 | |
13 | 53/0.254 | 2.13 | 0.38 | 0.33 | 3.00±0.10 | 6.82/7.10 | 3 | 2 | |
12 | 65/0.254 | 2.36 | 0.76 | 0.69 | 4.00±0.15 | 5.43/5.64 | 3 | 2 | |
11 | 83/0.254 | 2.67 | 0.76 | 0.69 | 4.35±0.15 | 4.30/4.48 | 3 | 2 | |
10 | 105/0.254 | 3.00 | 0.76 | 0.69 | 4.70±0.15 | 3.409/3.546 | 3 | 2 | |
9 | 131/0.254 | 3.70 | 0.76 | 0.69 | 5.40±0.20 | 2.705/2.813 | 3 | 2 | |
8 | 168/0.254 | 4.08 | 0.76 | 0.69 | 5.70±0.20 | 2.144/2.230 | 3 | 2 | |
7 | 210/0.254 | 4.70 | 0.76 | 0.69 | 6.30±0.20 | 1.700/1.768 | 3 | 2 | |
6 | 266/0.254 | 5.14 | 0.76 | 0.69 | 6.80±0.20 | 1.348/1.403 | 3 | 2 | |
5 | 329/0.254 | 5.80 | 0.76 | 0.69 | 7.40±0.20 | 1.070/1.113 | 3 | 2 | |
4 | 680/0.20 | 6.36 | 0.76 | 0.69 | 8.00±0.20 | 0.8481/0.8820 | 3 | 2 | |
3 | 859/0.20 | 7.40 | 1.14 | 1.02 | 9.80±0.25 | 0.6727/0.6996 | 3 | 2 | |
2 | 1073/0.20 | 8.40 | 1.14 | 1.02 | 10.80±0.30 | 0.5335/0.5548 | 3 | 2 | |
1 | 1350/0.20 | 9.00 | 1.14 | 1.02 | 11.50±0.30 | 0.4230/0.4398 | 3 | 2 | |
1/0 | 1690/0.20 | 10.20 | 1.40 | 1.27 | 13.20±0.30 | 0.3354/0.3487 | 3 | 2 | |
2/0 | 2146/0.20 | 11.70 | 1.40 | 1.27 | 14.70±0.30 | 0.2660/0.2766 | 3 | 2 | |
3/0 | 2700/0.20 | 13.10 | 1.40 | 1.27 | 16.10±0.40 | 0.2110/0.2194 | 3 | 2 | |
4/0 | 3405/0.20 | 13.90 | 1.40 | 1.27 | 16.90±0.40 | 0.1673/0.1722 | 3 | 2 |
