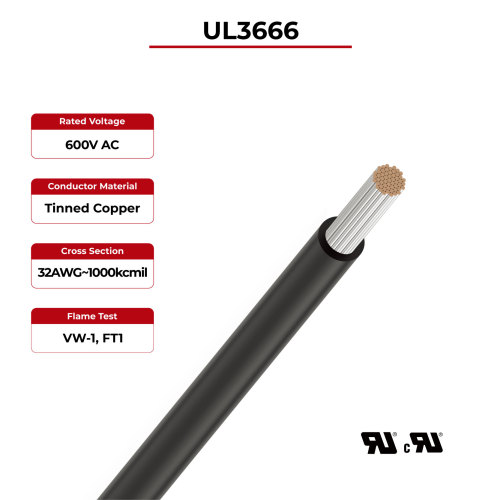

600V Energy Storage Cable UL3666
- Model
- UL3666
Item specifics
- Conductor
- Annealed soft tin copper
- Insulation
- XLPE
- Rated temperature
- -40°C ~ +105°C
- Rated voltage
- 600V AC
- Flame test
- Horizontal flame UL VW-1 & CSA FT1
- According to
- UL758, UL1581
Review
Description
UL3666 Energy Storage Cable Advantages
UL3666 Energy Storage Cable
UL 3666 energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.
· Easy stripping and cutting
· Good flexibility
· High flamen retardant
· High temperature resistance
· UV resistant
UL3666 Energy Storage Cable Technical Data
|
Conductor:
|
Annealed soft tin copper
|
|
|
Insulation:
|
XLPE |
|
|
Rated temperature:
|
-40°C ~ +105°C
|
|
|
Rated voltage:
|
600V AC
|
|
According to: | UL758, UL1581 | |
Flame test: | Horizontal flame
UL VW-1 & CSA FT1 | |
UL3666 Energy Storage Cable Product description
Cable Name | Cross Section
(AWG) | Insulation Nom Thickness (mm) | Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
UL style 3666 |
26
|
0.38
|
1.30 |
150 |
|
24
|
0.38
|
1.45
|
94.2 | |
22 | 0.38 | 1.60 | 59.4 | |
20 | 0.38 | 1.80 | 36.7 | |
18 | 0.38 | 2.00 | 23.2 | |
16 | 0.38 | 2.40 | 14.6 |
