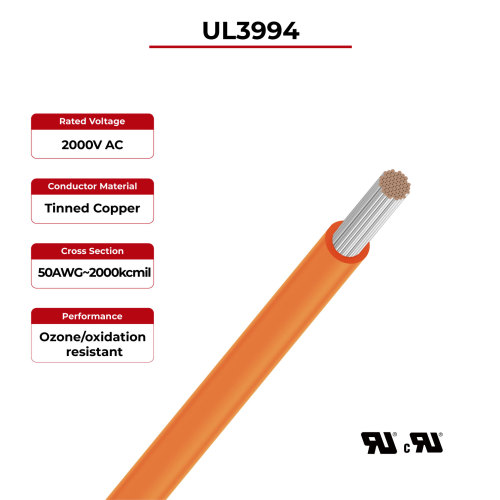

2kV Energy Storage Cable UL3994
- Model
- UL3994
Item specifics
- Conductor
- Tinned or bare copper, stranded or solid
- Insulation
- XLPO, RoHS compliant
- Rated temperature
- -40°C~ +105°C
- Rated voltage
- 2000V AC
- According to
- UL758, UL1581
- Flame test
- Horizontal flame UL VW-1 & CSA FT1
Review
Description
UL 3994 Energy Storage Cable Advantages
UL 3994 Energy Storage Cable
UL 3994 energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.
· Low smoke halogen free
· High temperature resistant
· Ozone/oxidation resistant
· High flexibility
UL 3994 Energy Storage Cable Technical Data
|
Conductor
|
Tinned or bare copper, stranded or solid
|
|
|
Insulation
|
XLPO, RoHS compliant |
|
|
Rated temperature
|
-40°C~ +105°C
|
|
|
Rated voltage
|
2000V AC
|
|
According to | UL758, UL1581 | |
Flame test | Horizontal flame
UL VW-1 & CSA FT1 | |
UL 3994 Energy Storage Cable Product description
Cable Name |
Cross Section
(AWG) |
Insulation Nom Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
UL 3994 |
24
|
0.76
|
2.20
|
94.2 |
22 | 0.76 | 2.40 | 59.4 | |
20 | 0.76 | 2.60 | 36.7 | |
18 | 0.76 | 2.80 | 23.2 | |
16 | 0.76 | 3.10 | 14.6 | |
14 | 0.76 | 3.50 | 8.96 | |
12 | 0.76 | 4.00 | 5.64 | |
10 | 0.76 | 4.90 | 3.54 | |
9 | 0.76 | 5.30 | 2.81 | |
8 | 1.15 | 6.50 | 2.23 | |
7 | 1.15 | 7.00 | 1.768 | |
6 | 1.15 | 7.60 | 1.403 | |
5 | 1.15 | 8.20 | 1.113 | |
4 | 1.15 | 9.00 | 0.882 | |
3 | 1.15 | 9.80 | 0.6996 | |
2 | 1.15 | 10.90 | 0.5548 | |
1 | 1.40 | 12.30 | 0.4398 | |
1/0 | 1.40 | 13.40 | 0.3487 | |
2/0 | 1.40 | 14.70 | 0.2766 | |
3/0 | 1.40 | 16.20 | 0.2194 | |
4/0 | 1.40 | 17.80 | 0.1722 |
