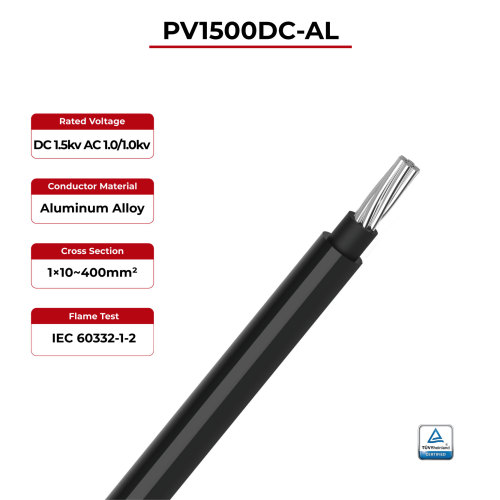

1.5kV Solar Cable Single Core 2PfG 2642 PV1500DC-AL TÜV
- Model
- 2PfG 2642 PV1500DC-AL
Item specifics
- Rated temperature
- -40°C~90°C
- Max. Short Circuit Temp
- 250°C / 5s
- Tested voltage
- 6.5kVAC / 5min
- Rated voltage
- DC 1500V U0/U=1000V
- Conductor
- Stranded aluminum alloy, Class 2, 1×10~400mm²
- Insulation
- XLPO
- Jacket
- XLPO
- Flame test
- IEC 60332-1
Review
Description
2PfG 2642 PV1500DC-AL Solar Cable Advantages
1.5kV Solar Cable Single Core 2PfG 2642 PV1500DC-AL TÜV
UV resistant low voltage cable. Especially welsuited for outdoor applications due to the very robust outer sheath. Acc. to TÜV Rheinland 2PfG2642 /01.22 for aluminium cables and protected, fixed installation in ground.
· Halogen-free
· UV resistant
· XLPO insulation and jacket
· Simple feed, low friction of the jacket
· Flame retardant lEC 60332-1
2PfG 2642 PV1500DC-AL Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Max. Short Circuit Temp | 250°C / 5s | |
Tested voltage | 6.5kVAC / 5min | |
|
Rated voltage
|
DC 1500V
U0/U=1000V |
|
2PfG 2642 PV1500DC-AL Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Single Core 2PfG 2642 PV1500DC-AL TÜV | 10 | 0.80 | 5.8 | 0.80 | 7.4 | 3.08 |
16 | 0.90 | 6.8 | 0.90 | 8.6 | 1.91 | |
25 | 1.00 | 8.2 | 1.00 | 10.2 | 1.200 | |
35 | 1.10 | 9.4 | 1.10 | 11.6 | 0.868 | |
50 | 1.20 | 10.9 | 1.20 | 13.3 | 0.641 | |
70 | 1.20 | 12.6 | 1.20 | 15.0 | 0.443 | |
95 | 1.30 | 14.3 | 1.30 | 16.9 | 0.320 | |
120 | 1.30 | 15.8 | 1.30 | 18.4 | 0.253 | |
150 | 1.40 | 17.5 | 1.40 | 20.3 | 0.206 | |
185 | 1.60 | 19.4 | 1.60 | 22.6 | 0.164 | |
240 | 1.70 | 21.9 | 1.70 | 25.3 | 0.125 | |
300 | 1.80 | 24.3 | 1.80 | 27.9 | 0.1000 | |
400 | 2.00 | 27.5 | 2.00 | 31.5 | 0.0788 |
