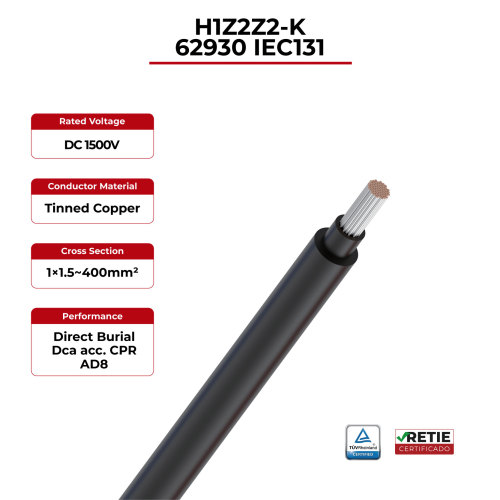

1.5kV Solar Cable Single Core 62930 IEC131 / H1Z2Z2-K TÜV
- Model
- 62930 IEC131 / H1Z2Z2-K
Item specifics
- Tested voltage
- 6500V AC
- Rated voltage
- DC 1500V
- Rated temperature
- -40°C~90°C
- Conductor
- Tinned copper 1X1.5~400mm²
- Insulation
- XLPO
- Jacket
- XLPO, Optional color
- Water resistance
- AD8
- Flammability class
- Dca acc. CPR
- Reference Standard
- EN50618 & IEC62930
Review
Description
62930 IEC131 / H1Z2Z2-K Solar Cable Advantages
1.5kV Solar Cable Single Core 62930 IEC131 / H1Z2Z2-K TÜV
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.
· Higher UV-stability
· Suitable for direct burial
· Water resistance AD8
· Flammability class Dca acc.CPR
· Higher mechanical stability
· Higher insulation resistance
62930 IEC131 / H1Z2Z2-K Solar Cable Technical Data
|
Conductor
|
Tinned copper
|
|
|
Insulation
|
XLPO
|
|
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
DC 1500V
|
|
Testing Standard | Smoke Density Test: Transmittance≥60% EN50618
Cold Bending Test: -40°C±2°C no crack EN60811-504 | |
Reference Standard | EN50618 & IEC62930 | |
62930 IEC131 / H1Z2Z2-K Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Single Core 62930 IEC131 / H1Z2Z2-K TÜV | 1.5 | 0.70 | 0.80 | 4.70 | 13.7 |
2.5 | 0.70 | 0.80 | 5.20 | 8.21 | |
4.0 | 0.70 | 0.80 | 5.50 | 5.09 | |
6.0 | 0.70 | 0.80 | 6.10 | 3.39 | |
10 | 0.70 | 0.80 | 7.20 | 1.95 | |
16 | 0.70 | 0.90 | 8.80 | 1.24 | |
25 | 0.90 | 1.00 | 10.80 | 0.795 | |
35 | 0.90 | 1.10 | 12.40 | 0.565 |
