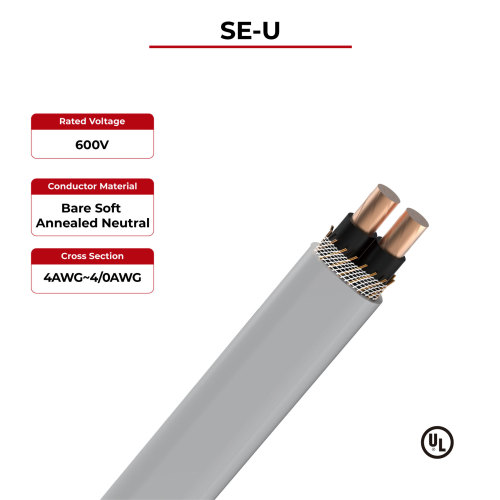

600V Solar Cable SE-U UL Certified
- Model
- SE-U
Item specifics
- Rated temperature
- -40°C~90°C
- Rated voltage
- 600V
- Conductor
- Class B, aluminum
- Insulation
- XLPE
- Jacket
- PVC, Gray
- Neutral
- Bare soft annealed neutral
- Binder
- Reinforcement binder
- Reference Standard
- UL854, UL1893
Review
Description
SE-U Solar Cable Advantages
600V Solar Cable SE-U UL
Type SE, 600V service entrance cable with aluminum conductor, is primarily used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard. However, the cable may be used in all applications where Type SE cable is permitted. SE-U may be used in wet or dry locations at temperatures not to exceed 90°C.
· UV resistant
· Low smoke halogen free
· Can be used in wet and dry environments
SE-U Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
|
Rated voltage
|
600V
|
|
Reference Standard | UL854, UL1893 | |
SE-U Solar Cable Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) | Ground Size (AWG) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,25°C) |
600V Solar Cable SE-U UL | 4 | 1.14 | 1x6 | 0.76 | 12.7x20.8 | 0.258 |
4 | 1.14 | 1x4 | 0.76 | 13.4x21.6 | 0.258 | |
3 | 1.14 | 1x5 | 0.76 | 13.4x22.5 | 0.205 | |
3 | 1.14 | 1x3 | 0.76 | 14.2x22.9 | 0.205 | |
2 | 1.14 | 1x4 | 0.76 | 14.9x24.5 | 0.162 | |
2 | 1.14 | 1x2 | 0.76 | 15.2x24.8 | 0.162 | |
1 | 1.40 | 1x1 | 0.76 | 17.0x28.0 | 0.128 | |
2/0 | 1.40 | 1x2/0 | 0.76 | 20.0x33.2 | 0.081 | |
3/0 | 1.40 | 1x3/0 | 0.76 | 22.0x36.4 | 0.064 | |
4/0 | 1.40 | 1x4/0 | 0.76 | 23.3x39.2 | 0.051 |
