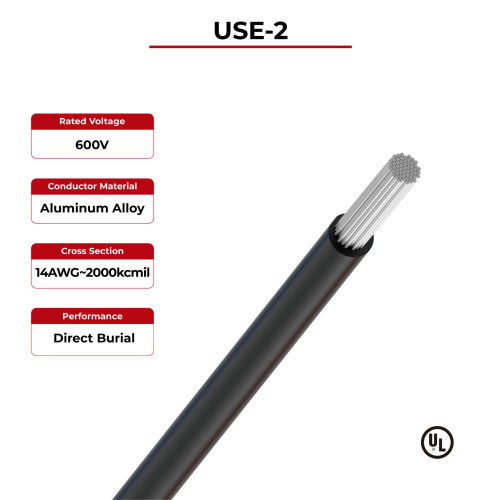

600V Solar Cable USE-2 UL Certificated

Model: USE-2

Item specifics

Rated temperature: -40°C~90°C

Rated voltage: 600V

Insulation: XLPE,Type USE-2

Reference Standard: UL854, UL1893

Review

Description

USE-2 Solar Cable Advantages

600V Solar Cable USE-2 UL

Conductors are stranded, compressed 1350-H16/H26 (3/4 Hard) aluminum, insulated with cross-linked polyethylene UL listed as Type USE-2 . These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions.

· Can be buried directly

· Wearable tubes and slots

· Can be used in wet and dry environments

USE-2 Solar Cable Technical Data

Rated temperature	-40°C~90°C
Rated voltage	600V
Reference Standard	UL854, UL1893

USE-2 Solar Cable Product description

Cable Name	Cross Section (AWG)	Inner Layer Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,25°C)
600V Solar Cable USE-2 UL	6	1.52	7.57	0.674
	4	1.52	8.76	0.424
	2	1.52	10.24	0.266
	1	2.03	12.01	0.211
	1/0	2.03	13.00	0.167
	2/0	2.03	14.10	0.133
	3/0	2.03	15.32	0.105
	4/0	2.03	16.71	0.084
	250	2.41	18.59	0.071
	300	2.41	19.91	0.059
	350	2.41	21.11	0.050
	500	2.41	24.28	0.035
	600	2.79	27.58	0.029
	700	2.79	29.44	0.024
