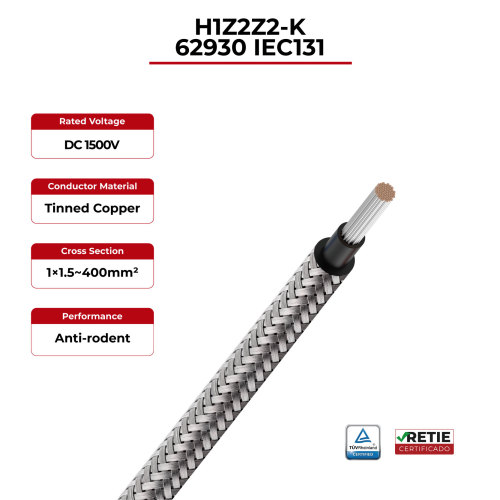

1.5kV Solar Cable Anti-rodent 62930 IEC131 / H1Z2Z2-K RETIE
- Model
- Anti-rodent 62930 IEC131 / H1Z2Z2-K
Item specifics
- Rated temperature
- -40°C~90°C
- Rated voltage
- 1500V DC
- Tested voltage
- 6500V AC
- Conductor
- Tinned copper 1.5~400mm²
- Insulation
- XLPO, Optional color
- Jacket
- XLPO, Optional color
- Outer screen
- Steel wire
- Flame Test
- IEC 60332-1
- Reference Standard
- EN50618 & IEC62930
Review
Description
Anti-rodent 62930 IEC131 / H1Z2Z2-K Solar Cable Advantages
1.5kV Solar Cable Anti-rodent 62930 IEC131 / H1Z2Z2-K RETIE
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.
· Higher UV-stability
· Higher water resistance
· Higher mechanical stability
· Higher insulation resistance
· Flame retardantlEC 60332-1
· Wrapped in stainless steel toprevent rats from chewing
Anti-rodent 62930 IEC131 / H1Z2Z2-K Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Rated voltage | 1500V DC | |
Tested voltage | 6500V AC | |
Reference Standard | EN50618 & IEC62930 | |
|
Testing Standard
|
Smoke Density Test: Transmittance≥60% EN50618
Cold Bending Test: -40°C±2°C no crack EN60811-504
Flame Test: IEC 60332-1 |
|
Anti-rodent 62930 IEC131 / H1Z2Z2-K Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Knitting Thickness | Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Anti-rodent 62930 IEC131 / H1Z2Z2-K RETIE | 4.0 | 0.70 | 0.80 | 80~85% | 6.30 | 13.7 |
6.0 | 0.70 | 0.80 | 80~85% | 6.90 | 8.21 | |
10 | 0.70 | 0.80 | 80~85% | 8.00 | 5.09 |
