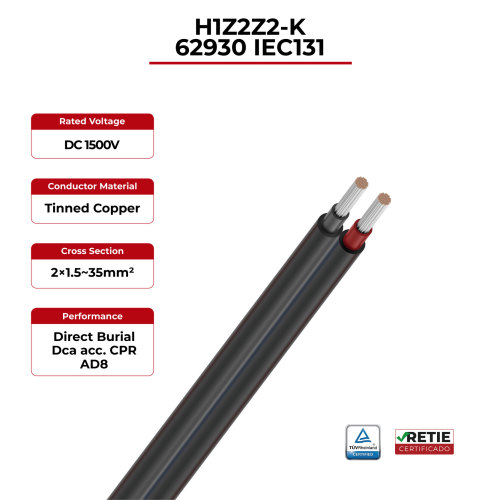

1.5kV Solar Cable Twin Core 62930 IEC131 / H1Z2Z2-K RETIE
- Model
- 62930 IEC131 / H1Z2Z2-K
Item specifics
- Rated temperature
- -40°C~90°C
- Tested voltage
- 6500V AC
- Rated voltage
- 1500V DC

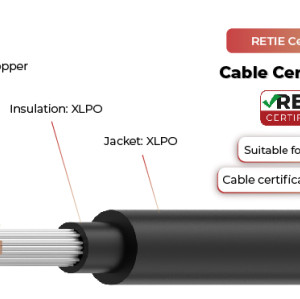

- Conductor
- Tinned copper 2X1.5~35mm²
- Insulation
- XLPO, Optional color
- Jacket
- XLPO, Optional color
- Water resistance
- AD8
- Flammability class
- Dca acc. CPR
- Reference Standard
- EN50618 & IEC62930
Review
Description
Twin Core 62930 IEC131 / H1Z2Z2-K Solar Cable Advantages
1.5kV Solar Cable Twin Core 62930 IEC131 / H1Z2Z2-K RETIE
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.
· Higher Uv-stability
· Suitable for direct burial
· Water resistance AD8
· Flammability class Dca acc.CPR
· Higher mechanical stability
· Higher insulation resistance
Twin Core 62930 IEC131 / H1Z2Z2-K Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
1500V DC
|
|
Reference Standard | EN50618 & IEC62930 | |
Testing Standard | Smoke Density Test: Transmittance≥60% EN50618
Cold Bending Test: -40°C±2°C no crack EN60811-504 | |
Twin Core 62930 IEC131 / H1Z2Z2-K Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Twin Core 62930 IEC131 / H1Z2Z2-K RETIE | 2x1.5 | 0.70 | 0.80 | 4.70*9.60 | 13.7 |
2x2.5 | 0.70 | 0.80 | 5.20*10.60 | 8.21 | |
2x4.0 | 0.70 | 0.80 | 5.50*11.20 | 5.09 | |
2x6.0 | 0.70 | 0.80 | 6.10*12.40 | 3.39 | |
2x10 | 0.70 | 0.80 | 7.20*14.70 | 1.95 | |
2x16 | 0.70 | 0.90 | 8.80*17.90 | 1.24 | |
2x25 | 0.90 | 1.00 | 10.80*21.90 | 0.795 | |
2x35 | 0.90 | 1.10 | 12.40*25.10 | 0.565 |
