2kV Solar Cable Copper Conductor Dual Layer RPVU90, RPVU105
- Model
- RPVU90, RPVU105
Item specifics
- Rated voltage
- 1000/2000V
- Outer Layer
- XLPO, Black, red or other colors
- Inner Layer
- XLPO, Black or white
- Conductor
- Aluminum alloy
- According to
- CSA C22.2 NO.271:11, CSA C22.2 NO.38
Review
Description

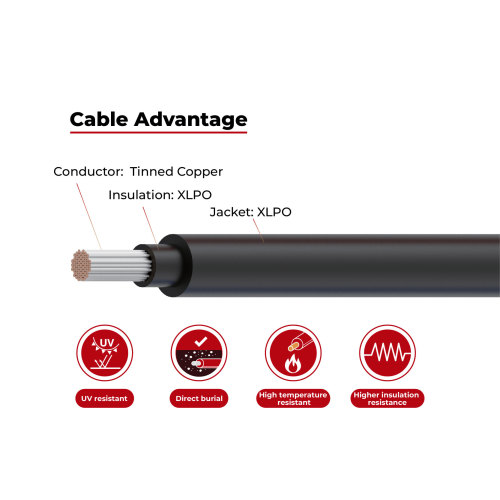

RPVU90, RPVU105 Solar Cable Advantages
2kV Solar Cable Copper Conductor Dual Layer RPVU90, RPVU105
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.
· UV resistant
· Rated for direct buria
· High flame retardant FT
· Low smoke halogen free
· Higher insulation resistance
RPVU90, RPVU105 Solar Cable Technical Data
|
Rated temperature
|
RPVU90: -40°C ~ +90°C
RPVU105: -40°C ~ +105°C |
|
|
Rated voltage
|
1000/2000V
|
|
Reference Standard | CSA C22.2 NO.271:11
CSA C22.2 NO.38 | |
RPVU90, RPVU105 Solar Cable Product description
Cable Name |
Cross Section
(AWG) | Inner Layer Thickness (mm) |
Inner Layer O.D. (mm) | Outer Layer Thickness (mm) | Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
2kV RPVU90, RPVU105 Dual Layer | 12 | 1.16 | 4.58 | 0.38 | 5.10 | 5.43 |
10 | 1.16 | 5.19 | 0.38 | 5.60 | 3.41 | |
8 | 1.35 | 6.31 | 0.76 | 7.40 | 2.14 | |
6 | 1.69 | 7.9 | 0.76 | 9.80 | 1.35 | |
4 | 1.69 | 9.1 | 0.76 | 11.00 | 0.848 | |
2 | 1.69 | 10.57 | 0.76 | 12.30 | 0.534 | |
1 | 2.02 | 12.22 | 1.14 | 14.70 | 0.423 | |
1/0 | 2.02 | 13.23 | 1.14 | 15.70 | 0.335 | |
2/0 | 2.02 | 14.04 | 1.14 | 16.50 | 0.266 | |
3/0 | 2.02 | 15.64 | 1.14 | 18.10 | 0.211 | |
4/0 | 2.02 | 17.04 | 1.14 | 19.50 | 0.167 |
