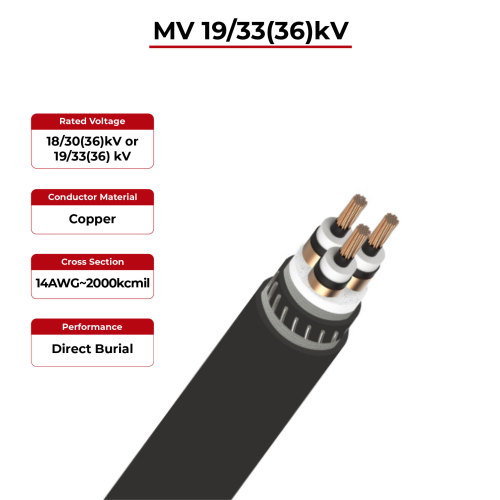

Solar Power Cable Medium Voltage MV 19/33(36)kV Three Core
- Model
- MV 19/33(36)kV Three Core
Item specifics
- Rated voltage
- 18/30(36)kV or19/33(36) kV
- Test voltage
- 63kV/5 mins
- Conductor
- Copper
- Insulation
- XLPE
- Max. Short-circuit temperature
- 250 ℃
- Operating conductor temperature
- 90 ℃
- Temperature range for operating
- -35 to +90 ℃
- Colour of sheath
- Black
- Min. bending radius
- 12 OD
- Standard
- IEC 60502-2
Review
Description
MV 19/33(36)kV Three Core Solar Cable Advantages
Solar Power Cable Medium Voltage MV 19/33(36)kV Three Core
Cables are designed for fixed installation into distribution network or possibly damp environments. lf it is necessary to lay the cable in the ground, it has to be provided with a protection tube made of plastics, and has to be laid in bed of sand. The cables are resistant to UV radiation and flame propagation according to lEC 60332.
· Rated for direct burial
· Duried in conduit
· Low smoke halogen free
· Higher insulation resistance
· High Voltage
MV 19/33(36)kV Three Core Solar Cable Technical Data
|
Maximum Conductor Temperature
|
90 °C
|
|
|
Rated voltage
|
18/30(36)kV or19/33(36) kV
|
|
Reference Standard | IEC 60502-2 | |
MV 19/33(36)kV Three Core Solar Cable Product description
Cable Name |
No. Cores & Cross Section Area (m㎡) | Approx. diameter of conductor |
Nominal
Thickness of Insulation (mm) |
Max. Overall Diameter of Cable (mm) | Approx. Weight of Cable (kg/km) | Max. D.C Resistance of Conductor (Ω/km, 20℃) | Max. A.C Resistance of Conductor (Ω/km, 90℃) |
MV 19/33(36)kV Three Core Solar Cable | 3 x 50 | 8.1 | 8.0 | 80.5 | 9120.5 | 0.387 | 0.494 |
3 x 70 | 9.8 | 8.0 | 84.8 | 10336.0 | 0.268 | 0.342 | |
3 x 95 | 11.4 | 8.0 | 88.8 | 11621.1 | 0.193 | 0.247 | |
3 x 120 | 12.9 | 8.0 | 92.6 | 12847.7 | 0.153 | 0.196 | |
3 x 150 | 14.4 | 8.0 | 96.3 | 14137.4 | 0.124 | 0.159 | |
3 x 185 | 16.0 | 8.0 | 100.3 | 15726.4 | 0.0991 | 0.128 | |
3 x 240 | 18.4 | 8.0 | 106.4 | 18236.0 | 0.0754 | 0.0979 | |
3 x 300 | 20.6 | 8.0 | 111.7 | 20767.9 | 0.0601 | 0.0789 | |
3 x 400 | 23.4 | 8.0 | 119.0 | 24242.2 | 0.0470 | 0.0630 |
