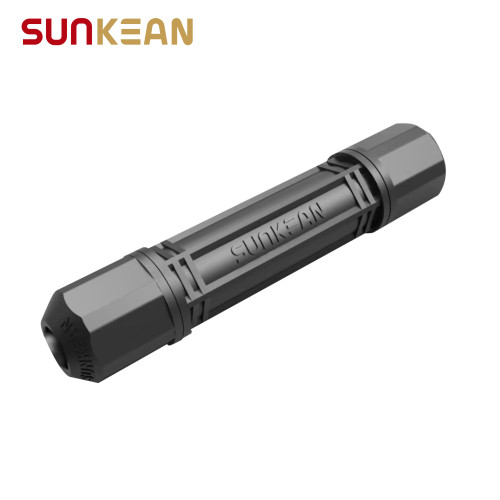

SK-TC CU-AL Conversion Connector TÜV
- Model
- SK-TC
Item specifics
- Certification
- TÜV
- Contact Material
- Copper-Aluminum Alloy, Tin-Plated
- Certification Standards
- IEC62852
Review
Description
Advantages
SK-TC CU-AL Conversion Connector
· Secure Connection, Superior Electrical Performance
· Longer Lifespan with Advanced Anti-Corrosion Coating
· Quick Installation, Compatible with Standard Systems
· Stable Performance in Extreme Environments
· Lightweight Design for Efficient Installation
· Eco-Friendly Production, Lower Lifecycle Cost
Product description
Product Name | Item | Plug Connector |
||
SK-TC CU-AL Conversion Connector | Operating Temperature Range | -40°C~+85°C |
||
Maximum Temperature | 115°C |
|||
Protection Rating | IP68（1m, 1h)/ IP65 | |||
Protection Rating (Unmated) | IP 2X | |||
Rated Voltage | 1500V DC | |||
Rated Current (at 85°C) | 50A 10mm²
70A 16mm² | |||
Rated Pulse Voltage | 16kV | |||
Contact Resistance | ≤ 0.3mΩ | |||
Flammability Rating | UL94V-0 | |||
Overvoltage Category | CAT III | |||
Pollution Degree | 2 | |||
Insulation Material | PA66 | |||
Contact Material | Copper-Aluminum Alloy, Tin-Plated | |||
Connection Method | Crimping | |||
Certification Standards | IEC62852 | |||
