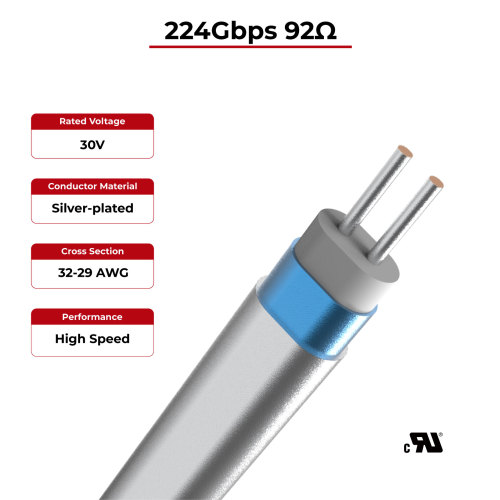

92Ω High Speed Cable 224Gbps UL Certified
- Model
- 224Gbps
Item specifics
- Rated temperature
- 80°C
- Rated voltage
- 30V
- Insulation
- FEP+FEP/PE FEP+ePTFE
- Environmental Standards Compliance
- RoHS 2.0
- File Number
- E522621
- Supports
- Up to 67 GHz
Review
Description
92Ω High Speed Cable 112Gbps Advantages
92Ω High Speed Cable 112Gbps
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.
· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
92Ω High Speed Cable 112Gbps Technical Data
Insulation | FEP+ePTFE/FEP+PE+CU |
| Rated temperature | 80°C |
| Rated voltage | 30V |
| Ground Wire | No |
Environmental Standards Compliance | RoHS 2.0 |
File Number | E522621 |
92Ω High Speed Cable 112Gbps Product description
Cable Name |
Cross Section
(AWG) |
Insulation
| Insulation OD (mm) | Ground Cable | Cable O.D. (mm) | Insertion Loss (53.13GHz) | Delay |
92Ω High Speed Cable 224Gbps | 32 | FEP+ePTFE | 0.58 | No | 0.92*1.35 | 15dB | 7ps |
29 | FEP+PE+CU | 0.64 | No | 1.16*1.76 | 10.5dB | 7ps |
