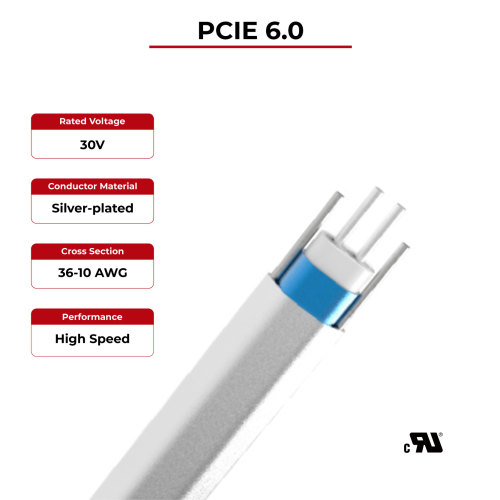

85Ω High Speed Cable PCIE 6.0 UL Certified
- Model
- PCIE6.0
Item specifics
- Rated temperature
- 80°C
- Rated voltage
- 30V
- Conductor
- Silver-plated
- Insulation
- FEP+FEP/PE; FEP+PTFE
- Environmental Standards Compliance
- RoHS 2.0
- File Number
- E522621
Review
Description
High Speed Cable PCIE 6.0 Advantages
85Ω High Speed Cable PCIE 6.0
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.
· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
High Speed Cable PCIE 6.0 Technical Data
Conductor | Silver-plated |
Insulation | FEP+FEP/PE
FEP+PTFE |
| Rated temperature | 80°C |
| Rated voltage | 30V |
| Ground Wire | Yes |
Environmental Standards Compliance | RoHS 2.0 |
File Number | E522621 |
High Speed Cable PCIE 6.0 Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) |
Cable O.D.
(mm) | Insertion Loss (16GHz) | Delay |
85Ω High Speed Cable PCIE 6.0 | 30 | 0.52 0.63 | 1.08*1.8 1.05*1.8 | 5.1dB | 5.2ns |
