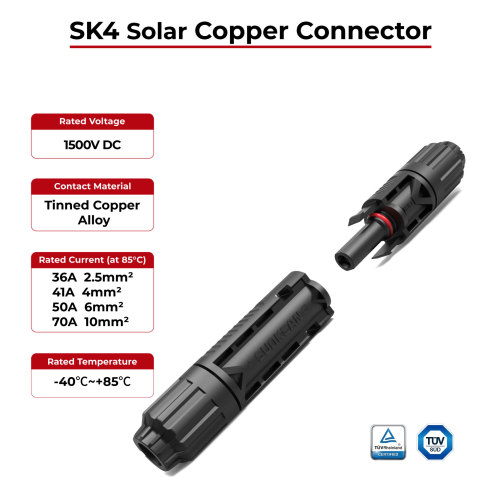

SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV
- Model
- SK4
Item specifics
- Operating Temperature Range
- -40°C~+85°C
- Upper Limit Temperature
- 120°C
- Protection Rating
- IP65/IP68 (1m,1h )
- Rated Voltage
- 1500V DC
- Rated Current (at 85°C)
- 36A 2 .5mm², 41A 4mm², 50A 6mm², 70A 10mm²
- Rated Impluse Voltage
- 27.2kV
- Pollution Degree
- 2 (inside of enclosure)
- Insulation Material
- PA66
- Contact Material
- Tinned Copper Alloy
- Certification Standards
- IEC 62852:2014 + Amd. 1:2020 EN 62852:2015 + Amd.
- Certification
- TÜV Rheinland / TÜV SÜD
Review
Description
SK4 Solar Copper Connector Advantages
SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV
· Secure Connection, Superior Electrical Performance
· Longer Lifespan with Advanced Anti-Corrosion Coating
· Quick Installation, Compatible with Standard Systems
· Stable Performance in Extreme Environments
· Lightweight Design for Efficient Installation
· Eco-Friendly Production, Lower Lifecycle Cost
SK4 Solar Copper Connector Product TUV description
Product Name | Item | Plug Connector |
||
SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV | Operating Temperature Range | -40℃~+85℃ |
||
Upper Limit Temperature | 120°C |
|||
Protection Rating | IP65 / IP68 (1m,1h) | |||
Protection Rating (Unmated) | IP 2X | |||
Rated Voltage | 1500V DC | |||
Rated Current (at 85°C) | 36A 2.5mm²41A 4mm² 50A 6mm²
70A 10mm² | |||
Rated Impluse Voltage | 27.2kV | |||
Contact Resistance | ≤ 0.3mΩ | |||
Flammability Rating | UL94V-0 | |||
Overvoltage Category | CAT III | |||
Pollution Degree | 2 (inside of enclosure) | |||
Insulation Material | PA66 | |||
Contact Material | Tinned Copper Alloy | |||
Terminal Connection Method | Crimping | |||
Connector Locking Mechanism | Locking | |||
Mating Cycles of the Connector | 100 | |||
Certification Standards | IEC 62852:2014 + Amd. 1:2020
EN 62852:2015 + Amd. 1:2020 | |||
Certification | TÜV Rheinland / TÜV SÜD | |||
