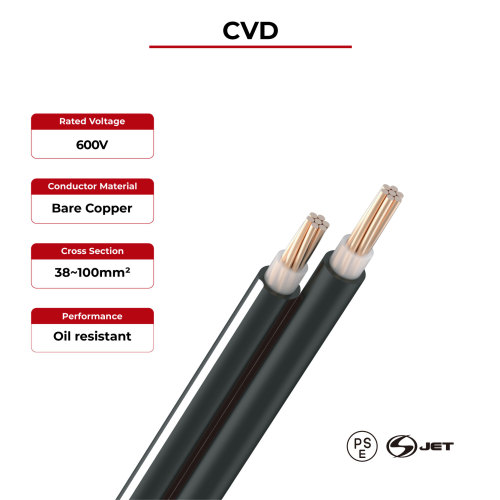

600V Solar Cable CVD JET Certificated
600V Solar Cable CVD JET Certificated
600V Solar Cable CVD JET Certificated
600V Solar Cable CVD JET Certificated
Model
CVD

Item specifics

Rated temperature
-15°C~70°C
Tested voltage
2500V AC
Rated voltage
600V
Reference Standard
JIS C 3005, JIS C 3605
Conductor
Bare copper
Insulation
XLPE, Natural color
Jacket
PVC, Black

Review

Description

CVD Solar Cable JET Certified Advantages
solar cable
600V Solar Cable CVD JET Certified
The D in the name of CVD cable means double, i.e. two cores, which are clearly distinguished by different colored marking strips. With the most universal 600V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test, ensuring the security and stability of Japanese market projects.

· High insulation resistance
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
· Flame retardant JIS C 3005 (60 degrees tilt test)
CVD Solar Cable JET Certified Technical Data
Rated temperature
-15°C~70°C
Tested voltage
2500V AC
Rated voltage
600V
Reference Standard
JIS C 3005, JIS C 3605
jet solar cable
cvd solar cable
CVD Solar Cable JET Certified Product description
Cable Name
Cross Section
(mm²)
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,20°C)
600V Solar Cable CVD JET
38
1.20
1.50
26.00
0.491
60
1.50
1.50
30.50
0.311
100
2.00
1.50
37.50
0.187
