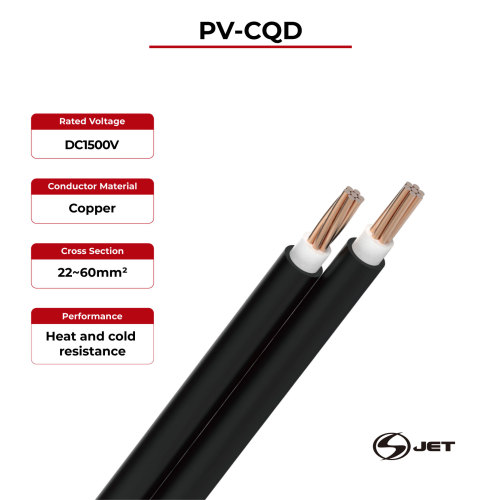

1.5kV Solar Cable PV-CQD JET Certificated
1.5kV Solar Cable PV-CQD JET Certificated
1.5kV Solar Cable PV-CQD JET Certificated
1.5kV Solar Cable PV-CQD JET Certificated
Model
PV-CQD

Item specifics

Rated temperature
-40°C~90°C
Tested voltage
6500V AC
Rated voltage
1500V DC
Reference Standard
JETST-CABL-001-1 (H25-10)
Conductor
Stranded soft copper, 22~60mm²
Insulation
XLPE, White
Jacket
XLPO, Black

Review

Description

PV-CQD Solar Cable Advantages
solar cable
1.5kV Solar Cable PV-CQD JET
The last letter D of PV-CQD means double, i.e. two cores. With the universal 1500V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JET certification and has excellent flame retardant and weather resistance, ensuring the security and stability of Japanese market projects. It uses XLPE and XLPO as cable insulation and sheath materials, which is estimated to last 25 years in photovoltaic power generation and solar system.

· Excellent flame retardant and weather resistance
· Heat and cold resistance
· Halogen free
PV-CQD Solar Cable Technical Data
Rated temperature
-40°C~90°C
Tested voltage
6500V AC
Rated voltage
1500V DC
Reference Standard
JETST-CABL-001-1 (H25-10)
jet solar cable
pv-cqd solar cable
PV-CQD Solar Cable Product description
Cable Name
Cross Section
(mm²)
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,20°C)
1.5kV Solar Cable PV-CQD JET
22
0.90
1.26
20.60
0.832
38
0.90
1.32
24.60
0.481
60
1.00
1.40
29.40
0.305
