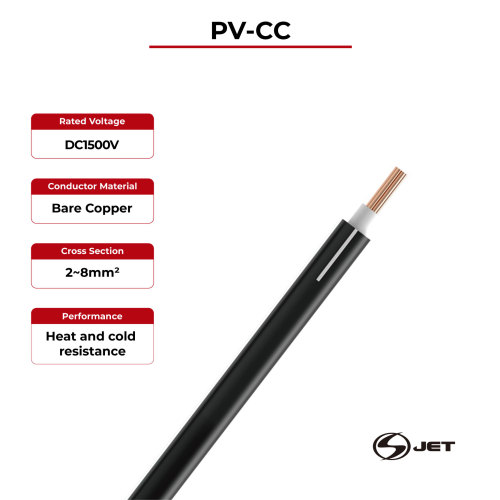

1.5kV Solar Cable PV-CC JET Certificated
- Model
- PV-CC
Item specifics
- Rated temperature
- -40°C~90°C
- Tested voltage
- 6500V AC
- Rated voltage
- 1500V DC
- Conductor
- Bare copper(2~8mm²) or tinned copper(3.5~6mm²)
- Insulation
- XLPE, White
- Jacket
- XLPO, Black
- Flame Test
- JIS C3665-1-2
- Reference Standard
- JETST-CABL-001-1(H25-10)
Review
Description
PV-CC Solar Cable Advantages
1.5kV Solar Cable PV-CC JET
With the universal 1500V voltage and copper conductor, PV-CC cable can adapt to solar cell modules, extension cables between solar cell modules and junction boxes, wiring cables between connection boxes and power regulators in the Japanese market. In addition, it passed the JET certification and has excellent flame retardant and weather resistance, ensuring the security and stability of Japanese market projects. From the appearance, there is a white stripe on the XLPE sheath of the PV-CC cable, which can help distinguish it from other types of cables.
· Excellent flame retardant and weather resistance
· Heat and cold resistance
· Halogen free
· Corresponding processing of terminal connectors
PV-CC Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
1500V DC
|
|
Reference Standard | JETST-CABL-001-1(H25-10) | |
Testing Standard | Cold Bending Test: JIS C3660-1-4 Flame Test: JIS C3665-1-2 | |
PV-CC Solar Cable Product description
Cable Name |
Conductor
Material |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable PV-CC JET | Bare copper | 2 | 0.70 | 1.11 | 5.60 | 9.24 |
3.5 | 0.70 | 1.13 | 6.30 | 5.20 | ||
5.5 | 0.70 | 1.15 | 7.00 | 3.33 | ||
8 | 0.70 | 1.18 | 7.60 | 2.31 | ||
Tinned copper | 3.5 | 0.70 | 1.13 | 6.30 | 5.41 | |
4 | 0.70 | 1.14 | 6.30 | 5.09 | ||
5.5 | 0.70 | 1.15 | 7.00 | 3.47 | ||
6 | 0.70 | 1.16 | 7.10 | 3.39 |
