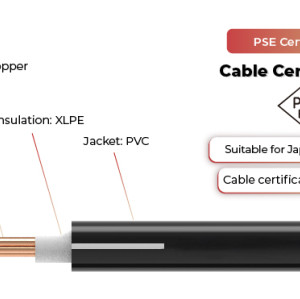

600V Solar Cable CV Single Core PSE
- Model
- CV Single Core
Item specifics
- Rated temperature
- -15°C~+70°C
- Insulation Rating Temperature
- 90°C
- Tested voltage
- 2~8mm² : 1500V 14~22mm² : 2000V
- Rated voltage
- 600V DC
- Reference Standard
- JIS C 3005, JIS C 3605
- Conductor
- Bare copper
- Insulation
- XLPE, Natural color
- Jacket
- PVC, Black
Review
Description
CV Single Core Solar Cable Advantages
600V Solar Cable CV Single Core PSE
Compared with CV multi-core cable, CV single-core cable has natural color insulation. With the most universal 600V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test and JIS C 3605, ensuring the security and stability of Japanese market projects.
· High insulation resistance
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
CV Single Core Solar Cable Technical Data
|
Rated temperature
|
-15°C~+70°C
|
|
Insulation Rating Temperature | 90°C | |
Tested voltage | 2~8mm² : 1500V
14~22mm² : 2000V | |
|
Rated voltage
|
600V DC
|
|
Reference Standard | JIS C 3005, JIS C 3605 | |
CV Single Core Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable CV Single Core PSE | 2.0 | 0.80 | 1.50 | 6.40 | 9.24 |
3.5 | 0.80 | 1.50 | 7.00 | 5.20 | |
5.5 | 1.00 | 1.50 | 8.00 | 3.33 | |
8.0 | 1.00 | 1.50 | 8.40 | 2.29 | |
14.0 | 1.00 | 1.50 | 9.40 | 1.31 | |
22.0 | 1.20 | 1.50 | 11.00 | 0.832 |
