600V Solar Cable AL-CV Multi Core E
- Model
- CV Single Core
Item specifics
- Rated temperature
- -15°C~+90°C
- Tested voltage
- 14~22mm² : 2.0 k V/1min AC
- Rated voltage
- 600V DC
- Reference Standard
- JCS 4348，JIS C 3005
- Conductor
- Aluminum
- Insulation
- XLPE, Natural color
- Jacket
- PVC, Blue
Review
Description
600V AL-CV Multi Core Solar Cable Advantages

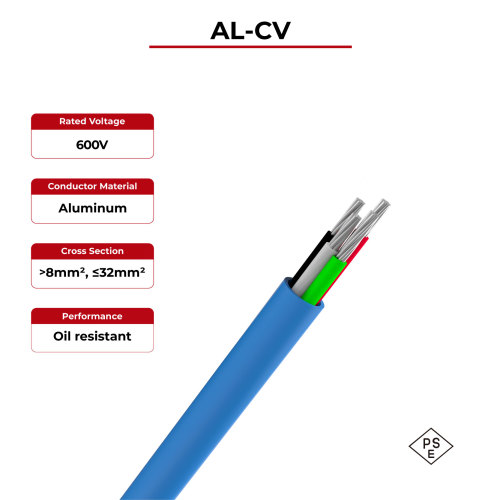

600V Solar Cable AL-CV Multi Core <PS>E
Compared with CV multi-core cable, CV single-core cable has natural color insulation. With the most universal 600V low voltage and aluminum conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test and JCS 4348, ensuring the security and stability of Japanese market projects.
· Good flexibility
· Damp heat-resistant
· Oil resistant
· UV resistant
600V AL-CV multi Core Solar Cable Technical Data
|
Rated temperature
|
-15°C~+90°C
|
|
Tested voltage | 14~22mm² : 2.0 k V/1min AC | |
|
Rated voltage
|
600V
|
|
Reference Standard | JCS 4348, JIS C 3005 | |
600V AL-CV Multi Core Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D. Range
(mm) |
Approximate Weight (kg/km) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable AL-CV Multi Core <PS>E | 2x14 | 1.0 | 1.5 | 16.50±0.50 | 251 | 2.18 |
2x22 | 1.2 | 1.5 | 19.50±0.50 | 349 | 1.39 | |
3x14 | 1.0 | 1.5 | 17.50±0.50 | 309 | 2.18 | |
3x22 | 1.2 | 1.5 | 20.70±0.80 | 437 | 1.39 | |
4x14 | 1.0 | 1.5 | 19.30±0.80 | 382 | 2.18 | |
4x22 | 1.2 | 1.5 | 23.10±0.80 | 555 | 1.39 |
