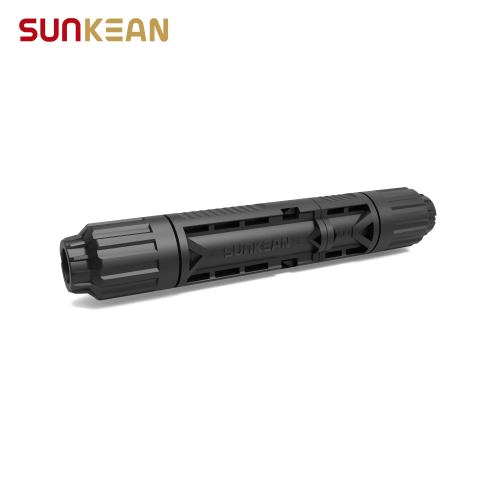

SK4A Solar Aluminum Connector 6mm 10mm TÜV
- Model
- SK4A
Item specifics
- Temperature Range
- -40℃~+105℃
- Rated Voltage
- 1500/2000V
- Bending Radius
- 5X Wire Diameter
- Standard
- 2PfG2642/UL4703
- Conductor
- IEC 60228 Class 5 Aluminum Alloy Wire
- Insulation
- XLPE All Color; XLPO Red or Black
- Jacket
- XLPE All Color; XLPO Red or Black
Review
Description
SK4A Solar Aluminum Connector Advantages
SK4A Solar Aluminum Connector 6mm 10mm TÜV
· Secure Connection, Superior Electrical Performance
· Longer Lifespan with Advanced Anti-Corrosion Coating
· Quick Installation, Compatible with Standard Systems
· Stable Performance in Extreme Environments
· Lightweight Design for Efficient Installation
· Eco-Friendly Production, Lower Lifecycle Cost
SK4A Solar Aluminum Connector Product TUV description
Product Name | Item | Plug Connector |
||
SK4A Solar Aluminum Connector 6mm 10mm TÜV | Operating Temperature Range | -40℃~+85℃ |
||
Maximum Temperature | 115°C |
|||
IP Rating | IP65 / IP68 (1m,1h) | |||
Protection Rating (Unmated) | IP 2X | |||
Voltage Rating | 1500V DC | |||
Rated Current (at 85°C) | 41A 6mm² 50A 10mm² | |||
Rated Pulse Voltage | 16kV | |||
Contact Resistance | ≤ 0.3mΩ | |||
Fire Resistance Rating | UL94V-0 | |||
Overvoltage Category | CAT III | |||
Pollution Degree | 2 | |||
Insulation Material | PA66 | |||
Contact Material | Copper-aluminum alloy, Tinning | |||
Connection Method | Riveting | |||
Certification Standards | IEC62852 | |||
