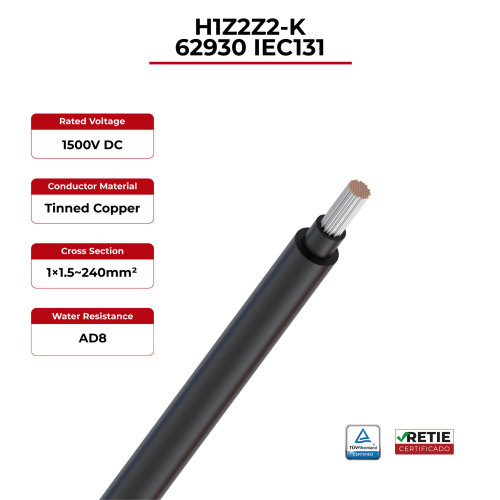

1.5kV Desert Solar Cable 62930 IEC131 / H1Z2Z2-K
- Model
- 62930 IEC131 / H1Z2Z2-K
Item specifics
- Tested voltage
- 6500V AC
- Rated voltage
- DC 1500V
- Rated temperature
- -40°C~90°C
- Conductor
- Tinned copper 1X1.5~400mm²
- Insulation
- XLPE
- Jacket
- XLPO
- Water resistance
- AD8
- Reference Standard
- EN50618 & IEC62930
Review
Description

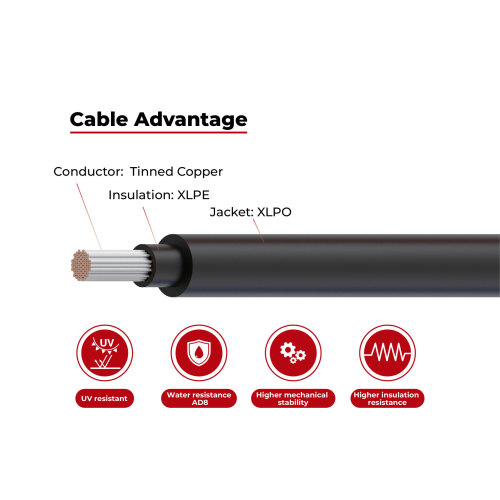

62930 IEC131 / H1Z2Z2-K Desert Solar Cable Advantages
1.5kV Desert Solar Cable 62930 IEC131 / H1Z2Z2-K
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components, and especially suitable for desert solar projects, featuring an AD8 water resistance rating and utilizing superior XLPE insulation material.
· Higher UV-stability
· Resistant to high and low temperature differences
· Water resistance AD8
· Wear resistant
· Higher mechanical stability
· Higher insulation resistance
· Moisture-proof and waterproof
62930 IEC131 / H1Z2Z2-K Solar Cable Technical Data
|
Conductor
|
Tinned copper
|
|
|
Insulation
|
XLPE
|
|
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
DC 1500V
|
|
Testing Standard | Smoke Density Test: Transmittance≥60% EN50618
Cold Bending Test: -40°C±2°C no crack EN60811-504 | |
Reference Standard | EN50618 & IEC62930 | |
62930 IEC131 / H1Z2Z2-K Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Desert Solar Cable 62930 IEC131 / H1Z2Z2-K | 1.5 | 0.70 | 0.80 | 4.70 | 13.7 |
2.5 | 0.70 | 0.80 | 5.20 | 8.21 | |
4.0 | 0.70 | 0.80 | 5.50 | 5.09 | |
6.0 | 0.70 | 0.80 | 6.10 | 3.39 | |
10 | 0.70 | 0.80 | 7.20 | 1.95 | |
16 | 0.70 | 0.90 | 8.80 | 1.24 | |
25 | 0.90 | 1.00 | 10.80 | 0.795 | |
35 | 0.90 | 1.10 | 12.40 | 0.565 |
