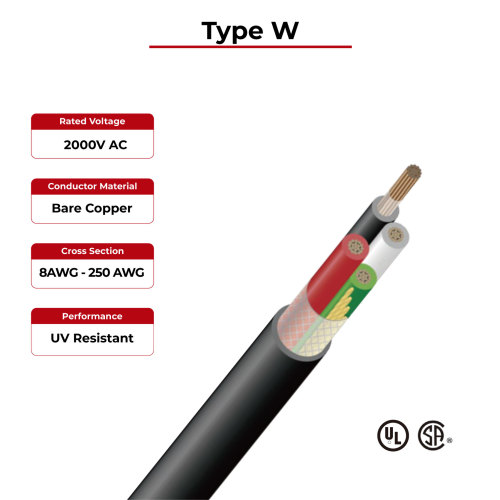

2000V High Speed Cable Type W
2000V High Speed Cable Type W
2000V High Speed Cable Type W

2000V High Speed Cable Type W

Model
Type W

Item specifics

Conductor
Copper
Insulation
EPR
Rated temperature
-40°C ~ +90°C
Rated voltage
AC 2000V
Flame Test
Horizontal flame CSA FT1/FT2
According to
TYPE W, UL1650

Review

Description

2000V High Speed Cable Type W Advantages
ul battery cable
Type W High Speed Cable
Type W high speed cables are used for various electric machineries , electronics, heating parts, car lights, lighting, ballast etc., flexible cable.

· Low smoke halogen free
· High temperature resistant
· Ozone / oxidation resistant
· High flexibility
Type W High Speed Cable Technical Data
Conductor
Copper
Insulation
EPR
Rated temperature
-40°C ~ +90°C
Rated voltage
AC 2000V
According to
TYPE W, UL1650
Flame Test
Horizontal flame CSA FT1/FT2
ul energy storage cable
Type W High Speed Cable Product description
Cable Name
Conductor
Insulation
Jacket
Maximum
conductor
resistance
at 20°C (DC)
(Ω/km) (AS/TS)
Spark Test
(kV(AC))
Dielectric
Strength
(kV/min(AC)）
Conductor Size
(AWG)
Cross Section
(mm²)
Conductor Size
(mm)
Number of core
(No.)
Insulation AVG
Thickness
(mm)
Approx. Jacket
I.D.
(mm)
JacketThicknes
Approx. Jacket O.D.
(mm)
Type W High Speed Cable
8
8.37
4.10
1
1.52
7.6
1.91
12.2
2.18
10
4
2
1.52
7.6
2.77
21.3
3
1.52
7.6
3.58
24.2
4
1.52
7.6
3.58
26.1
5
1.52
7.6
3.18
27.5
6
1.52
7.6
3.18
29.8
6
13.3
5.15
1
1.52
8.6
2.41
13.9
1.38
10
4
2
1.52
8.6
2.77
23.3
3
1.52
8.6
3.58
26.3
4
1.52
8.6
3.58
28.5
5
1.52
8.6
3.56
31.0
6
1.52
8.6
3.56
33.6
4
21.2
6.50
1
1.52
10.0
2.41
15.3
0.865
10
4
2
1.52
10.0
2.77
26.1
3
1.52
10.0
3.18
28.6
4
1.52
10.0
3.18
31.2
5
1.52
10.0
3.94
35.6
6
1.52
10.0
3.94
38.6
2
33.6
8.20
1
1.52
11.7
2.41
17.1
0.549
10
4
2
1.52
11.7
3.58
31.3
3
1.52
11.7
3.58
33.1
4
1.52
11.7
3.18
35.3
5
1.52
11.7
4.32
41.0
6
1.52
11.7
4.32
44.5
1
42.4
9.05
1
2.03
13.6
2.41
19.0
0.436
13
5
2
2.03
13.6
3.96
35.8
3
2.03
13.6
3.58
37.2
4
2.03
13.6
3.58
40.6
5
2.03
13.6
5.20
47.9
6
2.03
13.6
5.20
52.2
