2000V Main Cable For BESS HDPE
Item specifics
- Conductor
- Copper
- Insulation
- X-90 XLPE
- Jacket
- HDPE
- Rated voltage
- 2000V DC
- Rated temperature
- -55°C ~ +55°C
Review
Description
2000V Main cable Introduction

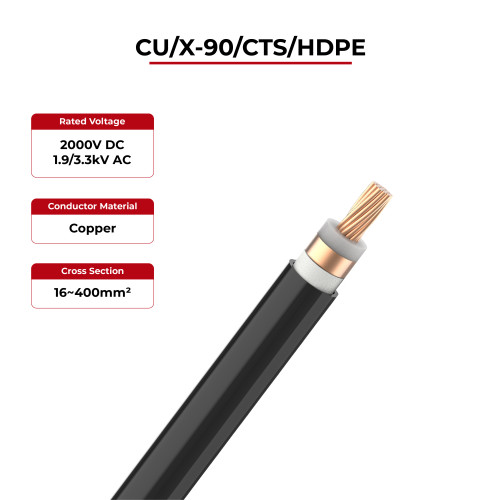

2000V Main Cable For BESS HDPE
Cables for use in BESS projects, manufactured complying with Australian and international standards such as AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033.
2000V Main Cable Technical Data
|
Conductor
|
Copper
|
|
|
Insulation
|
X-90 XLPE |
|
Jacket | HDPE | |
|
Rated temperature
|
-55°C ~ +55°C
|
|
|
Rated voltage
|
U=2000V DC,
U0/U=1900V/3300V AC |
|
Test voltage | 6.5kV/5min | |
Maximum Short-Circuit Temperature | 250°C/5s | |
Max. DC Voltage | UM=2200V DC | |
According to | AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033 | |

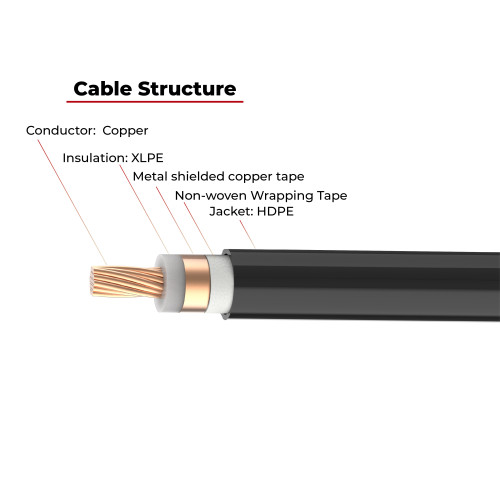

2000V Main Cable Product description
Conductor Area | Conductor OD | Insulation Thichness | Insulation OD | Metal Shielded Copper Tape | Shielding OD | Non-woven Wrapping Tape | Wrapping Tape OD | Jacket Thickness | Cable OD | Conductor Resistance Max (Ώ/km,20°C) |
16 | 4.5 | 2.0 | 8.5 | 0.12 | 8.9 | 0.1 | 9.2 | 1.80 | 12.8 | 1.1500 |
25 | 5.6 | 2.0 | 9.6 | 0.12 | 10.0 | 0.1 | 10.3 | 1.80 | 13.9 | 0.7270 |
35 | 6.7 | 2.0 | 10.7 | 0.12 | 11.1 | 0.1 | 11.4 | 1.80 | 15.0 | 0.5240 |
50 | 8.0 | 2.0 | 12.0 | 0.12 | 12.4 | 0.1 | 12.7 | 1.80 | 16.3 | 0.3870 |
70 | 9.4 | 2.0 | 13.4 | 0.12 | 13.8 | 0.1 | 14.1 | 1.80 | 17.7 | 0.2680 |
95 | 11.0 | 2.0 | 15.0 | 0.12 | 15.4 | 0.1 | 15.7 | 1.80 | 19.3 | 0.1930 |
120 | 12.4 | 2.0 | 15.4 | 0.12 | 16.8 | 0.1 | 17.1 | 1.80 | 20.7 | 0.1530 |
150 | 13.8 | 2.0 | 17.8 | 0.12 | 18.2 | 0.1 | 18.5 | 1.80 | 22.1 | 0.1240 |
185 | 15.3 | 2.0 | 19.3 | 0.12 | 19.7 | 0.1 | 20.0 | 1.80 | 23.6 | 0.0991 |
240 | 17.5 | 2.0 | 21.5 | 0.12 | 21.9 | 0.1 | 22.2 | 1.80 | 25.8 | 0.0754 |
300 | 19.5 | 2.0 | 23.5 | 0.12 | 23.9 | 0.1 | 24.2 | 1.80 | 28.0 | 0.0601 |
400 | 22.6 | 2.0 | 26.6 | 0.12 | 27.0 | 0.1 | 27.3 | 1.80 | 31.3 | 0.0470 |
