1500V Main Cable For BESS HDPE

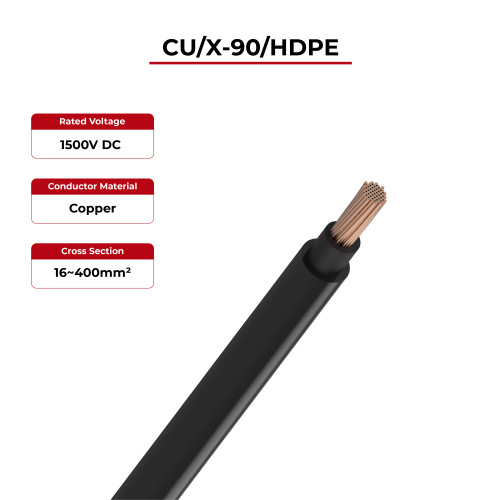

Item specifics

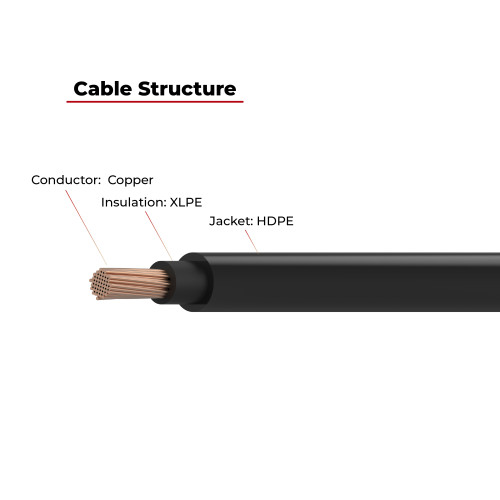

- Conductor
- Copper
- Insulation
- X-90 XLPE
- Jacket
- HDPE
- Rated voltage
- 1500V DC
- Rated temperature
- -40°C ~ +90°C
Review
Description
1500V Main cable Introduction
1500V Main Cable For BESS HDPE
Cables for use in BESS projects, manufactured complying with Australian and international standards such as AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033.
1500V Main Cable Technical Data
|
Conductor
|
Copper
|
|
|
Insulation
|
X-90 XLPE |
|
Jacket | HDPE | |
|
Rated temperature
|
-40°C ~ +90°C
|
|
|
Rated voltage
|
U=1500V DC,
U0/U=1000V/1000V AC |
|
Test voltage | 6.5kV AC/5min | |
Maximum Short-Circuit Temperature | 250°C/5s | |
Max. DC Voltage | UM=1800V DC | |
According to | AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033 | |
1500V Main Cable Product description
Conductor Area | Insulation Thichness | Jacket Thickness | Cable OD | Approx. Mass of Cable (kg/km) | Conductor Resistance Max (Ώ/km,20°C) |
16 | 0.7 | 1.4 | 11.2 | 187 | 1.1500 |
25 | 0.9 | 1.4 | 12.8 | 281 | 0.7270 |
35 | 0.9 | 1.4 | 13.8 | 373 | 0.5240 |
50 | 1.0 | 1.4 | 15.1 | 494 | 0.3870 |
70 | 1.1 | 1.4 | 17.1 | 695 | 0.2680 |
95 | 1.1 | 1.5 | 18.9 | 941 | 0.1930 |
120 | 1.2 | 1.5 | 20.5 | 1174 | 0.1530 |
150 | 1.4 | 1.6 | 22.6 | 1449 | 0.1240 |
185 | 1.6 | 1.7 | 24.9 | 1801 | 0.0991 |
240 | 1.7 | 1.8 | 27.6 | 2345 | 0.0754 |
300 | 1.8 | 1.8 | 30.0 | 2924 | 0.0601 |
400 | 2.0 | 2.0 | 33.6 | 3723 | 0.0470 |
