Solar Cable Jumper & Whip TÜV & UL
- Model
- Jumper & Whip
Item specifics
- IP Level
- IP68
- Connector Material
- PC/PA/PPE
- Flame Class
- UL 94-V0
Review
Description
Jumper & Whip Solar Cable Advantages

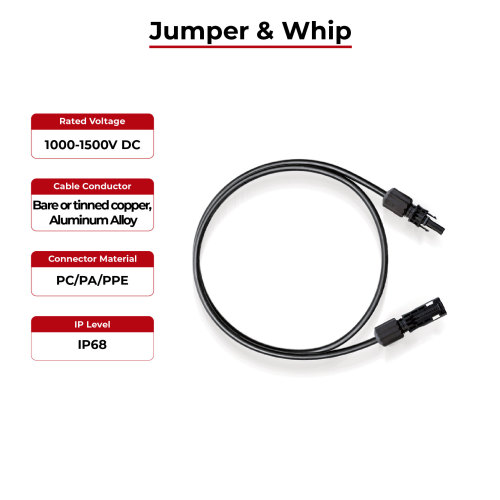

Solar Cable Jumper & Whip TÜV & UL
The two-section pre-assembled connector, as a flexible assembly component in the photovoltaic system, can effectively improve construction efficiency. When the cable is insufficient or positioned incorrectly in complex actual project scenarios, jumper & whip can easily solve the problem and ensure the stability of the current as before.
· Connector is set up at BOTH or SINGLE end of cable
· Appointed length is acceptable
· No need for terminal processing
· Tinned copper contact is pre-assembled, no need for a crush tool
· If the O.D. of two ends is different can also be connected
Jumper & Whip Solar Cable Product description
Product Name | Item | Plug Connector |
||
Solar Cable Jumper & Whip TÜV & UL | Cable Insulation Material | Double XLPO |
||
Cable Conductor | Bare or tinned copper, Aluminum Alloy (Optioanal) |
|||
Connector Material | PC/PA/PPE | |||
Rated Current | TÜV 30A /UL 20A | |||
Rated Voltage | 1000-1500V DC | |||
Contact Resistance | ≤ 0.5m'Ω | |||
Ambient Temp | -40°C-+90°C | |||
Plug Force | ≤50N | |||
Withdraw Force | ≥50N | |||
IP Level | IP68 | |||
Safety Class | II | |||
Flame Class | UL 94-V0 | |||
