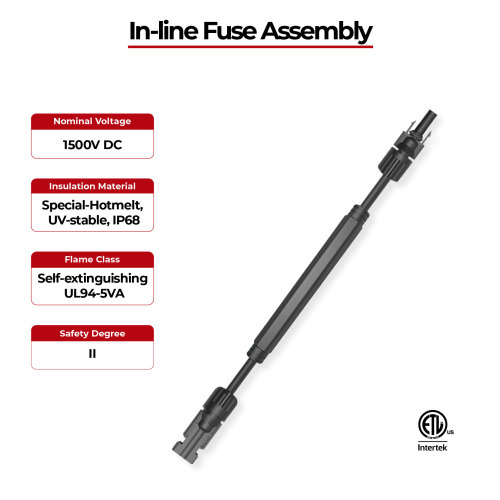

1500V Solar Cable In-line Fuse Assembly
- Model
- In-line Fuse Assembly
Item specifics
- Fuse-link
- Standard Ref. to: UL248-19, IEC 60269-6
- Insulation Material
- Special-Hotmelt, UV-stable, IP68
- Flame Class
- Self-extinguishing UL94-5VA
Review
Description
In-line Fuse Assembly Solar Cable Advantages
1500V Solar Cable In-line Fuse Assembly
SUNKEAN In-line Fuse Assembly is made of high-quality weather-resistant materials and mold-sealed manufacturing process to ensure long-term reliability. They can be installed on site. Low contact resistance and high current transfer capability ensure high production efficiency. With IP68 waterproof rating, it can be used in a wide operating temperature range.
In-line Fuse Assembly Solar Cable Technical Data
Product Name | Item | Plug Connector |
||
1500V Solar Cable In-line Fuse Assembly | Nominal Voltage | 1500V DC |
||
Interrupting Ratings | 50kA |
|||
Fuse-link | Standard Ref. to: UL248-19, IEC 60269-6 | |||
Insulation Material | Special-Hotmelt, UV-stable, IP68 | |||
Flame Class | Self-extinguishing UL94-5VA | |||
Working Environment Temperature | -40℃~+60'℃, Humidity range: 5%~95% | |||
Over Voltage Category/Pollution Degree | CATIII/3 | |||
Safety Degree | II | |||
In-line Fuse Assembly Solar Cable Product description
Product Type | Fuse Voltage | Fuse Current | Cable Spec | Connector |
S-I...VI：Fuse Holder | 1000V DC | 1-32A (10x85mm)
10-50A (14x85mm)
60A (24x65mm)
70A (24x65mm)
80A (24x65mm) | 3.5mm2
5.5mm2
4mm2 /12AWG 6mm2 /10AWG 10mm2 /8AWG 16mm2 /6AWG | TE PV4-S
STAUBLI MC4
STAUBLI MC4-EVO2
AMPHENOL H4S
QC4.10 Plus
TLIAN T4
TRINA TS4
JINKO JK03M2
LONGI PV-LR5
TONGLIN TL-CABLE01S |
