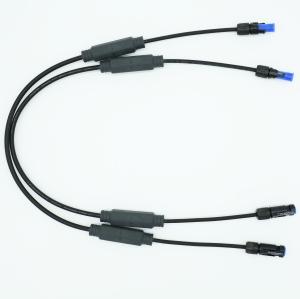

Solar Cable String Harness IP68
- Model
- String Harness
Item specifics
- IP Test
- IP68
- Material
- TPV
- Product Type
- I, T, X, Y, 3 to 1, 4 to 1, 5 to 1, 6 to 1
Review
Description
String Harness Solar Cable Advantages

                                Solar Cable String Harness IP68
                                We offer individual cable solutions for professional and safe cabling. Pre-assembled solutions ensure consistently high levels of quality and speed up assembly. From the appearance, string harness has a delicate appearance and harmonious and unified colors; from the process, the first-class injection molding equipment is used to create an excellent connection at the joint.
· Hi-tech sealing technology
· lP68
· Appearance patent
· Easy to install
· TPV material
· Reduce material consumption & labor costs

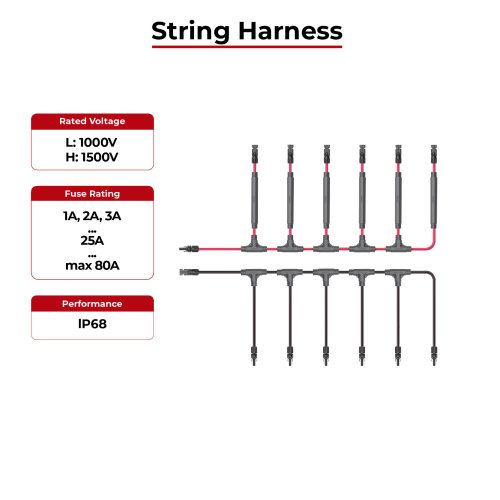

String Harness Solar Cable Product description
| Product Name | Product Type | Cable Section | Connector | Voltage | Fuse Rating |
| Solar Cable String Harness IP68 | S-I:I junction | 2.5mm2 / 14AWG 4mm2 / 12AWG 6mm2 / 10AWG 10mm2 / 8AWG 16mm2 / 6AWG 25mm2 / 2AWG | TE PV4-S
 STAUBLI MC4
 STAUBLI MC4-EVO2
 AMPHENOL H4S
 QC4.10 Plus
 TLIAN T4
 TRINA TS4
 JINKO JK03M2
 LONGI PV-LR5
 TONGLIN TL-CABLE01S | L: 1000V
 H: 1500V | 1A
 2A
 3A
 ...
 25A
 ...
 max 80A |
| S-T:T junction | |||||
| S-X:X junction | |||||
| S-Y:Y junction | |||||
| S-3 to 1: 3 to 1 junction | |||||
| S-4 to 1: 4 to 1 junction | |||||
| S-5 to 1: 5 to 1 junction | |||||
| S-6 to 1: 6 to 1 junction |
■ Strings can be customized according to needs
