600V Solar Cable Aluminum Conductor USE-2
600V Solar Cable Aluminum Conductor USE-2
600V Solar Cable Aluminum Conductor USE-2
600V Solar Cable Aluminum Conductor USE-2
Model
USE-2

Item specifics

Rated temperature
-40°C~90°C
Rated voltage
600V
Insulation
XLPE, Type USE-2
Ground
Green
Conductor
Class B, Aluminum alloy
Reference Standard
UL854, UL1893

Review

Description

USE-2 Solar Cable Advantages
solar cable
600V Solar Cable Aluminum Conductor USE-2

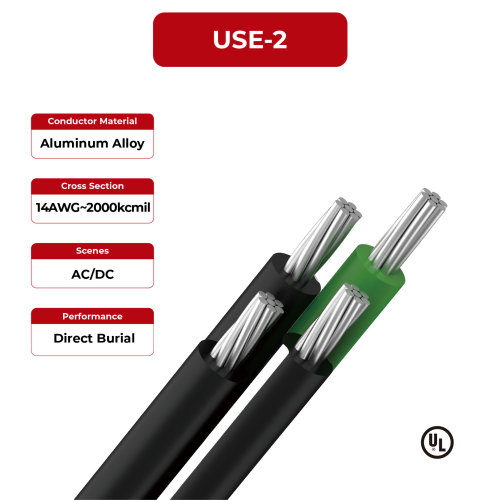

This mobile home feeder USE-2 has aluminum conductor and 600V voltage, is intended for the connection of mobile homes to a supply of electricity where permanent wiring is required as specified in the 2011 National Electrical Code. Suitable for direct burial in the earth at conductor temperatures not to exceed 90°C. The green cable in the picture is the grounding cable of use-2, which is one of the reasons why it is suitable for direct burial underground in the house.

· Can be buried directly
· Wearable tubes and slots
· Can be used in wet and dry environments

USE-2 Solar Cable Technical Data
Rated temperature
-40°C~90°C
Rated voltage
600V
Reference Standard
UL854, UL1893
aluminum solar cable
aluminum conductor cable
USE-2 Solar Cable Product description
Cable Name
Cross Section
(AWG)
Insulation Thickness
(mm)
Ground Size (AWG)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,25°C)
600V Solar Cable Aluminum Conductor USE-2
2
1.52
1x6
24.16
0.267
2
1.52
1x4
24.16
0.267
2/0
2.03
1x4
33.35
0.133
2/0
2.03
1x1
33.35
0.133
4/0
2.03
1x4
39.42
0.084
4/0
2.03
1x2/0
39.42
0.084
