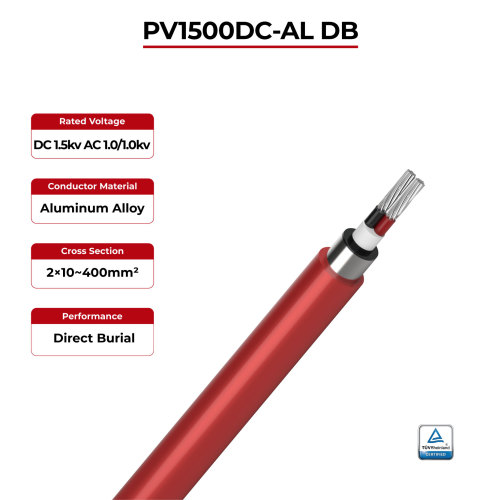

1.5kV Solar Cable Aluminum Conductor Dual Core 2PfG 2642 PV1500DC-AL DB
1.5kV Solar Cable Aluminum Conductor Dual Core 2PfG 2642 PV1500DC-AL DB
1.5kV Solar Cable Aluminum Conductor Dual Core 2PfG 2642 PV1500DC-AL DB
1.5kV Solar Cable Aluminum Conductor Dual Core 2PfG 2642 PV1500DC-AL DB
Model
2PfG 2642 PV1500DC-AL DB

Item specifics

Rated temperature
-40°C~90°C
Max. Short Circuit Temp
250°C / 5s
Tested voltage
6.5kVAC / 5min
Rated voltage
DC 1500V U0/U=1000V
Conductor
Stranded aluminum alloy, Class 2, 2×10~400mm²
Insulation
XLPO
Cover
XLPO
Armouring
Steel tapes
Outer Sheath
XLPO
Flame test
IEC 60332-1

Review

Description

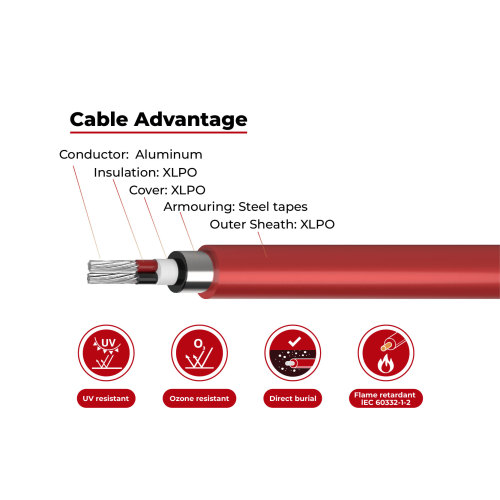

2PfG 2642 PV1500DC-AL DB Solar Cable Advantages
solar cable
1.5kV Solar Cable Aluminum Conductor Dual Core 2PfG 2642 PV1500DC-AL DB
UV resistant low voltage cable. Especially welsuited for outdoor applications due to the very robust outer sheath. Acc. to TÜV Rheinland 2PfG2642 /01.22 for aluminium cables and protected, fixed installation in ground.

· Suitable for direct burial
· UV resistant
· Radial humidity resistant
· Flame retardant lEC 60332-1
· Steel tapes armored, suitable as grounding andprotective earth

2PfG 2642 PV1500DC-AL DB Solar Cable Technical Data
Rated temperature
-40°C~90°C
Max. Short Circuit Temp
250°C / 5s
Tested voltage
6.5kVAC / 5min
Rated voltage
DC 1500V
U0/U=1000V
solar cable
2PfG 2642 PV1500DC-AL DB Solar Cable
2PfG 2642 PV1500DC-AL DB Solar Cable Product description
Cable Name
Cross Section
(mm²)
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Armored O.D.
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,20°C)
1.5kV Solar Cable Aluminum Conductor Dual Core 2PfG 2642 PV1500DC-AL DB
2x10
0.80
1.80
14.40
18.00
3.08
2x16
0.90
1.80
17.20
20.00
1.91
2x25
1.00
1.80
20.20
22.80
1.200
2x35
1.10
1.80
22.80
25.20
0.868
2x50
1.20
1.80
25.20
28.20
0.641
2x70
1.20
1.90
30.80
32.20
0.443
2x95
1.30
2.00
35.40
37.00
0.320
2x120
1.30
2.20
38.80
40.80
0.253
2x150
1.40
2.30
43.40
44.40
0.206
2x185
1.60
2.50
47.60
49.00
0.164
2x240
1.70
2.60
52.80
54.20
0.125
2x300
1.80
2.80
58.20
59.40
0.1000
2x400
2.00
3.10
67.60
66.80
0.0778
