1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL DB
- Model
- 2PfG 2642 PV1500DC-AL DB
Item specifics
- Rated temperature
- -40°C~90°C
- Max. Short Circuit Temp
- 250°C / 5s
- Tested voltage
- 6.5kVAC / 5min
- Rated voltage
- DC 1500V U0/U=1000V
- Conductor
- Stranded aluminum alloy, Class 2, 1×10~400mm²
- Insulation
- XLPO
- Cover
- XLPO
- Armouring
- Steel tapes
- Outer Sheath
- XLPO
- Flame test
- IEC 60332-1
Review
Description

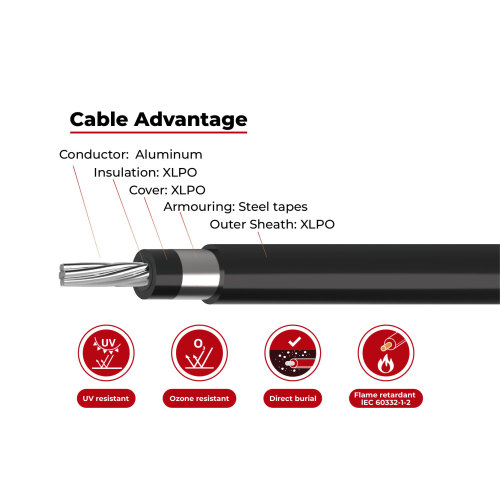

2PfG 2642 PV1500DC-AL DB Solar Cable Advantages

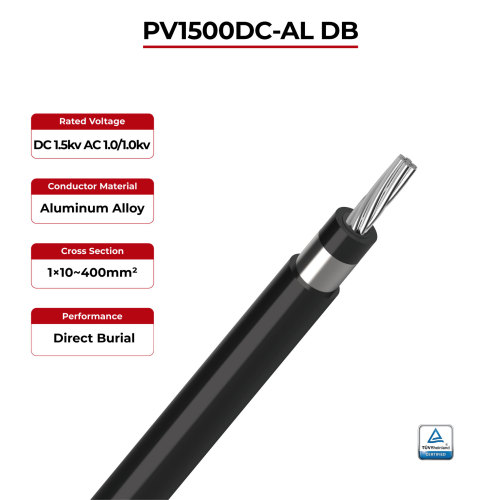

1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL DB
UV resistant low voltage cable. Especially welsuited for outdoor applications due to the very robust outer sheath. Acc. to TÜV Rheinland 2PfG2642 /01.22 for aluminium cables and protected, fixed installation in ground.
· Suitable for direct burial
· UV resistant
· Radial humidity resistant
· Flame retardant lEC 60332-1
· Steel tapes armored, suitable as grounding andprotective earth
2PfG 2642 PV1500DC-AL DB Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Max. Short Circuit Temp | 250°C / 5s | |
Tested voltage | 6.5kVAC / 5min | |
|
Rated voltage
|
DC 1500V
U0/U=1000V |
|
2PfG 2642 PV1500DC-AL DB Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Armored O.D.
(mm) | Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL DB | 10 | 0.80 | 0.80 | 8.60 | 11.60 | 3.08 |
16 | 0.90 | 0.90 | 10.00 | 12.60 | 1.91 | |
25 | 1.00 | 1.00 | 11.50 | 14.00 | 1.200 | |
35 | 1.10 | 1.10 | 12.80 | 15.20 | 0.868 | |
50 | 1.20 | 1.20 | 14.00 | 16.70 | 0.641 | |
70 | 1.20 | 1.20 | 16.60 | 18.40 | 0.443 | |
95 | 1.30 | 1.30 | 18.30 | 20.30 | 0.320 | |
120 | 1.30 | 1.30 | 19.80 | 21.80 | 0.253 | |
150 | 1.40 | 1.40 | 22.10 | 23.70 | 0.206 | |
185 | 1.60 | 1.60 | 24.00 | 25.60 | 0.164 | |
240 | 1.70 | 1.70 | 27.00 | 28.70 | 0.125 | |
300 | 1.80 | 1.80 | 29.70 | 31.30 | 0.1000 | |
400 | 2.00 | 2.00 | 35.40 | 35.90 | 0.0788 |
