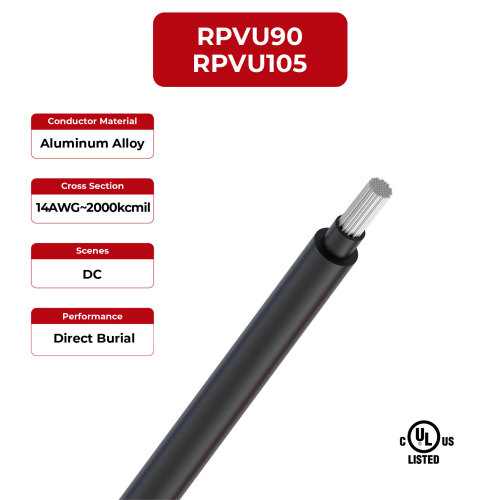

Model
RPVU90, RPVU105

Item specifics

Rated voltage
1000/2000V
Outer Layer
XLPO, Black, red or other colors
Inner Layer
XLPO, Black or white
Conductor
Aluminum alloy
According to
CSA C22.2 NO.271:11, CSA C22.2 NO.38

Review

Description

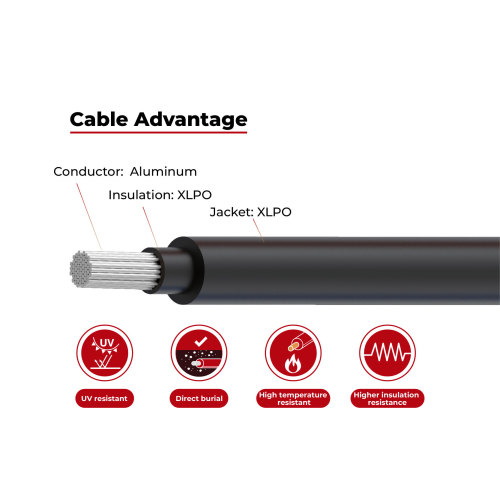

RPVU90, RPVU105 Solar Cable Advantages
solar cable
2kV Solar Cable Aluminum Conductor Dual Layer RPVU90, RPVU105
RPVU cable passed the FT-1 vertical burning test and has good flame retardancy, the 2kV voltage makes it perfectly suitable for various large-scale projects such as photovoltaic power stations. We prepare brand new but project-experienced aluminum conductor solutions, which can effectively control costs.

· UV resistant
· Rated for direct buria
· High flame retardant FT
· Low smoke halogen free
· Higher insulation resistance
RPVU90, RPVU105 Solar Cable Technical Data
Rated temperature
RPVU90: -40°C ~ +90°C
RPVU105: -40°C ~ +105°C
Rated voltage
1000/2000V
Reference Standard
CSA C22.2 NO.271:11
CSA C22.2 NO.38
solar cable
aluminum conductor cable
RPVU90, RPVU105 Solar Cable Product description
Cable Name
Cross Section
(AWG)
Inner Layer Thickness
(mm)
Inner Layer O.D.
(mm)
Outer Layer Thickness
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,20°C)
2kV Solar Cable Aluminum Conductor Dual Layer RPVU90, RPVU105
12
1.16
4.58
0.38
5.10
5.43
10
1.16
5.19
0.38
5.60
3.41
8
1.35
6.31
0.76
7.40
2.14
6
1.69
7.9
0.76
9.80
1.35
4
1.69
9.1
0.76
11.00
0.848
2
1.69
10.57
0.76
12.30
0.534
1
2.02
12.22
1.14
14.70
0.423
1/0
2.02
13.23
1.14
15.70
0.335
2/0
2.02
14.04
1.14
16.50
0.266
3/0
2.02
15.64
1.14
18.10
0.211
4/0
2.02
17.04
1.14
19.50
0.167
