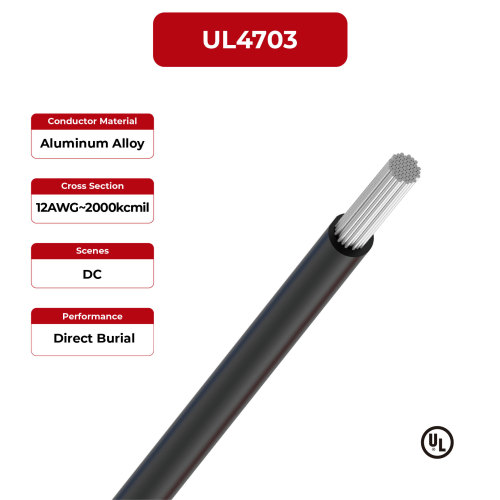

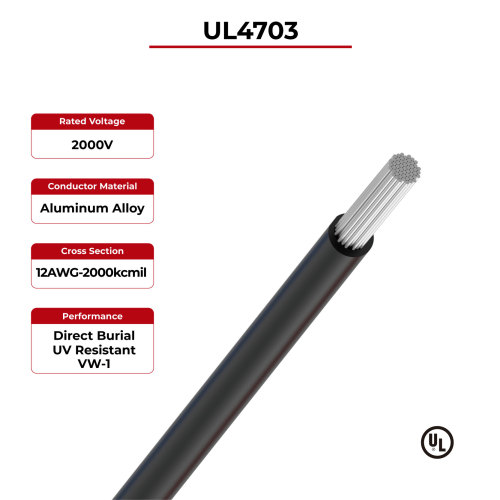

2kV PV Wire Aluminum Conductor Single Layer UL4703
- Model
- UL4703
Item specifics
- Rated temperature
- -40°C ~ +90°C
- Rated voltage
- 2000V
- Insulation
- XLPO, Black, red or other colors
- Conductor
- Aluminum alloy
- Reference Standard
- UL4703, UL44, UL854, RoHS
Review
Description

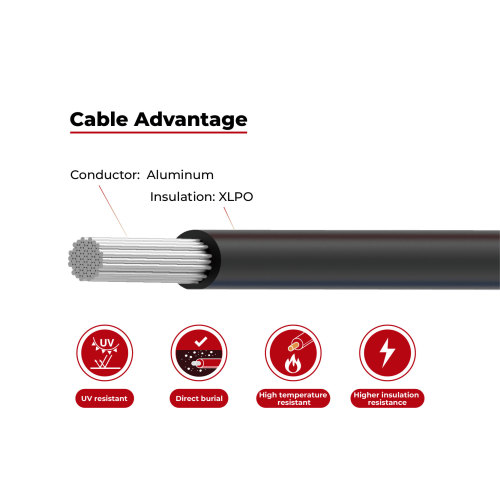

UL 4703 PV Wire Advantages
2kV PV Wire Aluminum Conductor Single Layer UL4703
UL4703 is one of the most common UL certified American standard cables. It passed the VW-1 vertical burning test and has good flame retardancy, the 2kV voltage makes it perfectly suitable for various large-scale projects such as photovoltaic power stations. We prepare brand new but project-experienced aluminum conductor solutions, which can effectively control costs.
· UV resistant
· Rated for direct burial
· High flame retardant FT
· Low smoke halogen free
· Higher insulation resistance
UL 4703 PV Wire Technical Data
|
Rated temperature
|
-40°C ~ +90°C
|
|
|
Rated voltage
|
2000V
|
|
Reference Standard | UL 4703 PV wire
UL 44 Thermoset-insulated cables
UL 854 Service-entrance cables
RoHs Compliant | |
UL 4703 PV Wire Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
2kV PV Wire Aluminum Conductor Single Layer UL4703 | 6 | 2.15 | 8.50 | 0.660 |
4 | 2.15 | 9.60 | 0.415 | |
2 | 2.15 | 10.90 | 0.261 | |
1 | 2.66 | 12.80 | 0.207 | |
1/0 | 2.66 | 13.80 | 0.164 | |
2/0 | 2.66 | 14.80 | 0.130 | |
3/0 | 2.66 | 16.00 | 0.103 | |
4/0 | 2.66 | 17.30 | 0.082 | |
250 | 3.04 | 19.20 | 0.069 | |
300 | 3.04 | 20.40 | 0.058 | |
350 | 3.04 | 21.60 | 0.050 | |
400 | 3.04 | 22.70 | 0.043 | |
500 | 3.04 | 24.60 | 0.035 | |
550 | 3.43 | 26.30 | 0.032 | |
600 | 3.43 | 28.00 | 0.027 | |
700 | 3.43 | 28.80 | 0.025 | |
750 | 3.43 | 29.50 | 0.023 |
