2kV Solar Cable Aluminum Conductor Single Layer RPVU90, RPVU105
2kV Solar Cable Aluminum Conductor Single Layer RPVU90, RPVU105
2kV Solar Cable Aluminum Conductor Single Layer RPVU90, RPVU105
2kV Solar Cable Aluminum Conductor Single Layer RPVU90, RPVU105
Model
RPVU90, RPVU105

Item specifics

Rated voltage
1000/2000V
Insulation
XLPO, Black, red, white or other colors
Conductor
Aluminum alloy
According to
CSA C22.2 NO.271:11, CSA C22.2 NO.38

Review

Description

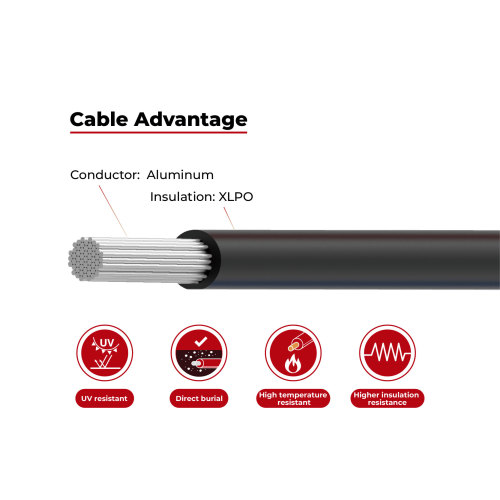

RPVU90, RPVU105 Solar Cable Advantages
solar cable
2kV Solar Cable Aluminum Conductor Single Layer RPVU90, RPVU105
RPVU cable passed the FT-1 vertical burning test and has good flame retardancy, the 2kV voltage makes it perfectly suitable for various large-scale projects such as photovoltaic power stations. We prepare brand new but project-experienced aluminum conductor solutions, which can effectively control costs.

· UV resistant
· Rated for direct buria
· High flame retardant FT
· Low smoke halogen free
· Higher insulation resistance

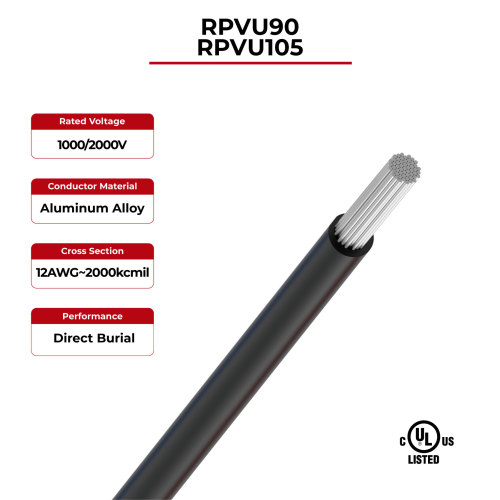

RPVU90, RPVU105 Solar Cable Technical Data
Rated temperature
RPVU90: -40°C ~ +90°C
RPVU105: -40°C ~ +105°C
Rated voltage
1000/2000V
Reference Standard
CSA C22.2 NO.271:11
CSA C22.2 NO.38
solar cable
aluminum conductor cable
RPVU90, RPVU105 Solar Cable Product description
Cable Name
Cross Section
(AWG)
Insulation Thickness
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,20°C)
2kV RPVU90, RPVU105 Single Layer
6
2.03
8.40
2.210
4
2.03
9.50
1.390
2
2.03
10.90
0.875
1
2.41
12.45
0.693
1/0
2.41
13.35
0.550
2/0
2.41
14.45
0.436
3/0
2.41
15.55
0.346
4/0
2.41
16.95
0.274
250
2.79
18.85
0.232
300
2.79
20.15
0.194
350
2.79
21.35
0.166
400
2.79
22.35
0.145
450
2.79
23.45
0.129
500
2.79
24.35
0.116
550
3.18
25.95
0.106
600
3.18
26.85
0.0967
650
3.18
27.65
0.0893
700
3.18
28.40
0.0829
750
3.18
29.30
0.0774
