1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL
1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL
1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL
1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL
Model
2PfG 2642 PV1500DC-AL

Item specifics

Rated temperature
-40°C~90°C
Max. Short Circuit Temp
250°C / 5s
Tested voltage
6.5kVAC / 5min
Rated voltage
DC 1500V U0/U=1000V
Conductor
Stranded aluminum alloy, Class 2, 1×10~400mm²
Insulation
XLPO
Jacket
XLPO
Flame test
IEC 60332-1

Review

Description

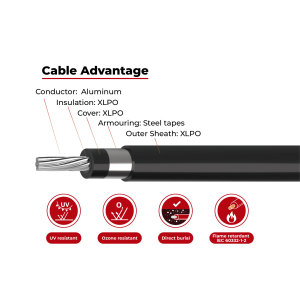

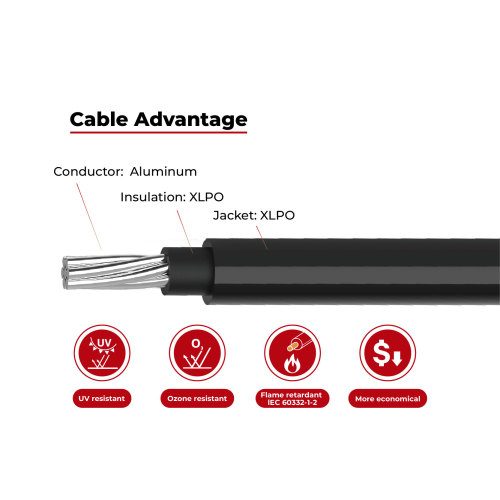

2PfG 2642 PV1500DC-AL Solar Cable Advantages
solar cable
1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL
UV resistant low voltage cable. Especially welsuited for outdoor applications due to the very robust outer sheath. Acc. to TÜV Rheinland 2PfG2642 /01.22 for aluminium cables and protected, fixed installation in ground.

· Halogen-free
· UV resistant
· XLPO insulation and jacket
· Simple feed, low friction of the jacket
· Flame retardant lEC 60332-1

2PfG 2642 PV1500DC-AL Solar Cable Technical Data
Rated temperature
-40°C~90°C
Max. Short Circuit Temp
250°C / 5s
Tested voltage
6.5kVAC / 5min
Rated voltage
DC 1500V
U0/U=1000V
solar cable
2PfG 2642 PV1500DC-AL solar cable
2PfG 2642 PV1500DC-AL Solar Cable Product description
Cable Name
Cross Section
(mm²)
Insulation Thickness
(mm)
Insulation O.D.
(mm)
Jacket Thickness
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,20°C)
1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL
10
0.80
5.8
0.80
7.4
3.08
16
0.90
6.8
0.90
8.6
1.91
25
1.00
8.2
1.00
10.2
1.200
35
1.10
9.4
1.10
11.6
0.868
50
1.20
10.9
1.20
13.3
0.641
70
1.20
12.6
1.20
15.0
0.443
95
1.30
14.3
1.30
16.9
0.320
120
1.30
15.8
1.30
18.4
0.253
150
1.40
17.5
1.40
20.3
0.206
185
1.60
19.4
1.60
22.6
0.164
240
1.70
21.9
1.70
25.3
0.125
300
1.80
24.3
1.80
27.9
0.1000
400
2.00
27.5
2.00
31.5
0.0788
