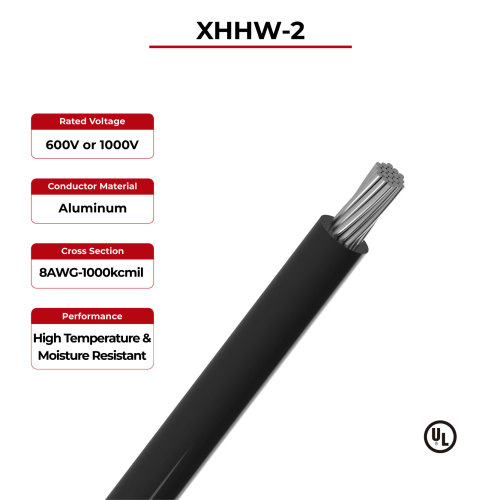

1kV PV Wire Aluminum Conductor Single Layer XHHW-2

Model: XHHW-2

Item specifics

Rated temperature: 90°C wet or dry

Rated voltage: 600V or 1000V

Insulation: XLPE, All colour

Conductor: Aluminum

Reference Standard: UL44

Review

Description

XHHW-2 PV Wire Advantages

1kV PV Wire Aluminum Conductor Single Layer XHHW-2

1kV PV Wire Aluminum Conductor Single Layer XHHW-2 is designed for reliable power transmission in photovoltaic and renewable energy applications. With an aluminum conductor and single-layer XHHW-2 insulation, it provides a lightweight, durable, and cost-effective solution. Rated up to 1kV, it delivers stable performance, excellent environmental resistance, and long-term reliability for utility-scale solar and power distribution systems.

· Easy stripping and cutting

· High temperature

· Ozone resistant

· UV resistant

· UL VW-1 & CSA FT1 & FT2

· More economical

XHHW-2 PV Wire Technical Data

Rated temperature	90°C wet or dry
Rated voltage	600V or 1000V
Reference Standard	UL 44

XHHW-2 PV Wire Product description

Cable Name	Cross Section (AWG/kcmil)	Conductor Stranded O.D. (mm)	Insulation Thickness (mm)	Cable O.D. Ref. Range (mm)	Approximate Weight(kg /km)	Conductor Resistance Max (Ώ/km,20°C)
1000V PV Wire Aluminum Conductor Single Layer XHHW-2	8	3.7	1.14	6.10±0.20	48.8	3.52
	6	4.3	1.14	6.70±0.20	65.8	2.21
	4	5.5	1.14	8.00±0.20	93.8	1.390
	3	6.1	1.14	8.60±0.30	112.3	1.100
	2	6.9	1.14	9.40±0.30	135.7	0.875
	1	7.7	1.40	10.70±0. 30	176.7	0.693
	1/0	8.6	1.40	11.60±0.30	213.2	0.550
	2/0	9.6	1.40	12.60±0.30	258.2	0.436
	3/0	10.7	1.40	13.80±0.50	313.9	0.346
	4/0	12.1	1.40	15.20±0.50	384.2	0.274
	250	13.2	1.65	16.80±0.50	464.2	0.232
	300	14.2	1.65	17.80±0.50	541.8	0.194
	350	15.6	1.65	19.50±0.80	622.5	0.166
	400	16.6	1.65	20.50±0.80	700.1	0.1450
	500	18.7	1.65	22.50±0.80	856.0	0.1160
	600	20.4	2.03	25.00±0.80	1051.8	0.0967
	750	22.9	2.03	27.50±1.20	1285.2	0.0774
	1000	26.5	2.03	31.00±1.20	1668.7	0.0580
